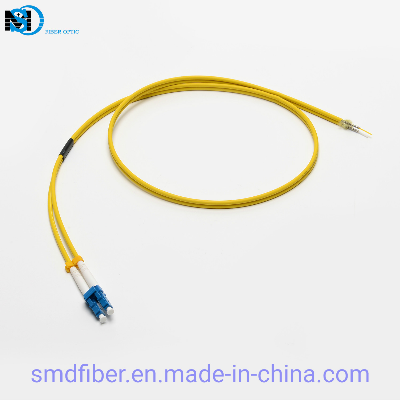

Singlemode LC/Upc Armored Dx 3.0mm PVC Pigtail

Singlemode LC/UPC Armored DX 3.0mm PVC PigtailFeaturesSimplex or duplex or multi fiber assembliesCustom fiber optic cable lengths and jacket colorsVarious fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimodeGood packing, competitive prices and very fast delivery100% geometry test anc IEC cleaning test are available ApplicationsCATVLAN and Access NetworkTelecom, Gigabit Data NetworkTesting and Medical equipmentsSpecifications  ParametersStandard Fiber Cable AssembliesFiber TypeSM(G.652/G.657A)MM(OM1/OM2/OM3/OM4/OM5)Jacket MaterialsLSZH/OFNR/PVCConnector TypeSC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000Ferrule MaterialsCeramicTesting Wavelengths1310±30/1550±30nm850±30/1300±30nmInsertion Losss(dB)≤ 0.25dB(PC/UPC/APC)≤ 0.3dB(PC/UPC)Return Loss(dB)≥50dB(PC/UPC) ≥60dB(APC)≥40dB(PC/UPC)Exchangeability≤ 0.2dBCable AssembliesPigtail/Simplex/Duplex/Fan-out Patchcord Storage Temperature (° C)-40 ~ +85Operating Temperature (° C)-10~ + 70Package1unit/bag*All values specified are with connectors.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
