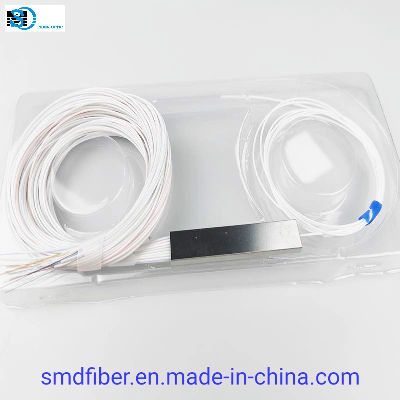

FTTH Steel Tube Bare PLC Splitters 1.5 Meter Without Connector

 FTTH steel tube bare PLC splitters 1.5 meter without connector Product IntroductionPLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.Bare PLC splitter  is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector. Feature Low Insertion Loss/Low PDL/High Return LossExcellent Uniformity Wide range of operating temperatureTelcordia GR-1209-CORE and GR-1221-CORE reliability  Application Fiber to The Home(FTTH)Passive optical networks(PON)Local Area Networks(LAN)Cable Television ( CATV)Specifications 1x N Parameter UnitSpecification  1x21x41x81x161x321x64Operate wavelengthnm1260-1650Insertion lossstandar dB3.67.010.213.316.520.0 MAX(p/s) 3.8/4.07.2/7.410.5/10.713.5/13.916.5/17.220.0/21.5PDLdB≤0.2≤0.2≤0.2≤0.3≤0.3≤0.3LossuniformaitydB≤0.6≤0.8≤1.0≤1.4≤1.6≤1.9Return loss@1550nmdB≥55≥55≥55≥55≥55≥55WavelengthdependentlossdB≤0.5≤0.5≤0.5≤0.5≤0.5≤0.5Fiber lengthm1.2(±0.1) or customer specifiedFiber length Corning SMF-28eor customer specifiedFiber typedB≤0.5Temperature stability(-40to +85)dB≤0.5Operating/storagetemperatureºC-40 to +85Max optical powermW300FAQ1. Q: How can I get your quotation?A: Please provide us informations as follows:a. Item Number & Quantity. b. Special Specification requirement.2. Q: How can I get a sample to check your quality?A: After price confirmation, you can require for samples to check our quality.3. Q: Terms of payment?A: We accept payment as follows:1).100% TT in advance. 2). 30% T/T deposit, 70% balance before delivery. 4. Q: Can you do OEM?A: Yes we can.5. Q: What about delivery time?A: 1) Samples: within 3 days.2) Goods: 3-7days usually./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
