Gjs (06) C Splitter-Distribution Box Manual

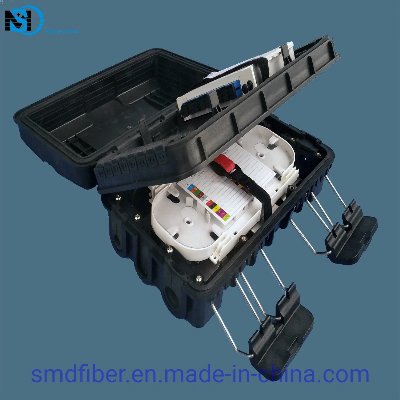

GJS(06)C Splitter-Distribution Box ManualDescriptionApplication:This product integrates optical splitting and cable distribution, can achieve direct or branch cable connection. It suits for the cable distribution of the optical communication equipment. Through the adapter installed in the box, the drop cable leads the signal out, that achieves optical cable distribution; also applies to the protective connection of cables and pigtails; The unique 3-layer structure of the box can be used for optical fiber splitting or distribution; middle plate can be flipped ≥180oC, which makes it more convenient to install and maintain. If take out the middle plate, the box can be used as "cable distribution box", which provide different options for users.2.Product features:The product is made of high-quality and impact resistant plastics, and has a standard use interface;Can install 2 box type (1:8) or 2 pipe type (1:8) PLCsplitters;Anti-UV, impact resistant and waterproof ;Can be mounted on the wall or pole;Unique and reversible middle plate can be flipped ≥180oC, that provides more distinctive area for fiber splicing and splitting, and the line crossing is reduced.Cable can access the box with no need of breaking.Technical indexFiber radius of curvature: ≥40mmOptical disk additional loss: ≤ 0.01dBTemperature Range: - 40°C ~ + 60°CAnti lateral pressure: ≥2000N / 10 cmShock resistance: ≥20N.mProduct specification  TypeSize(mm): L x W x HCable diameter (mm)Cable inlet/outletMax splittingMax Qty of splice trayCapacity of splice trayGJS (06)C (splitting box)290*190*110¢7~¢84/161:16 (1pc), 1:8 (2pc)124 (single core)   TypeSize(mm): L x W x HCable diameter (mm)Cable inlet/outletCapacity of splice trayMax Qty of splice trayCapacityGJS (06)C (distribution box)290*190*110¢7~¢82/224 (single core)372 (single core)  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
