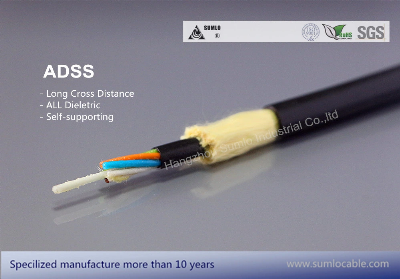

ADSS Optical Fiber Cable, All Dielectric Self-Supporting, Armid Yarns

ADSS Optical Fiber Cable, ALL Dielectric self-supporting  , Armid Yarns Description:Loose tube style, FRP as a good  central strenth member. Peripheral aramid yarns and  Black PE sheath suitable for overhead installation as pole-to-pole or pole-to -premises. Application:- Suitable in power line - Pole-to -pole or pole-to premises Properties:Self-supporting , long cross distance, Aramid yarns .  easy to manage aerial laying. *Physical Performance:  Designation Max. NO. of fibers per loose tubeNo. of Loose tubeFRP Dia. (mm)Outer Dia. (mm)Tensile Strength Resistance (short term)Crush Resistance (N/100mm)Permissible Bending Radius Weight Temperature Range (Static/ Dynamic)(kg/km)3KN642.312.53000220010times x Dia.                      20times x Dia.121Storage: -50ºC ~ +70ºCOperating:-40ºC ~ +60ºC 4KN642312.540001236KN642.312.5 6000126*Fiber color and Binder color code: according to EIA/TIA 598BRelated Products: -  Central tube optical fiber cable:     GYXY, GYXTW, GYXTY, GYXTA, GYXTS -   Stranded type fiber cable     GYSTY, GYSTS, GYSTA, GYTY53, GYTA53 -  Nonmetallic (FRP) fiber cable    GYFTY, GYFSTS, GYFTY53, GYFTA53. -  Figure-8 Self-supporting optical fiber cable    GYXTC8A, GYXTC8S, GYXTY8S, GYXTY8A, GYXTC8Y, GYXYC8Y, GYFTC8Y, GYTC8Y, GYTC8S, GYTC8A -   Aerial outdoor optical fiber cable     ADSS -  FTTH drop optical fiber cable     GJXH, GJXFH, GJXFDH, GJXDH   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
