Microduct Optical Fiber Connector for Fiber Optic Cable Equipment

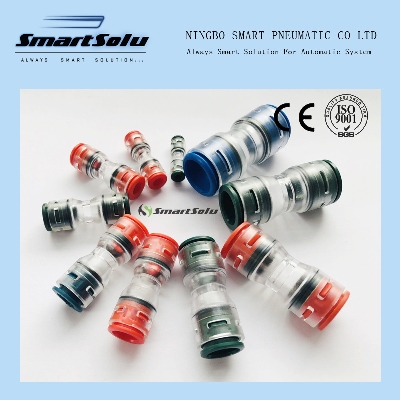

Microduct Optical Fiber Connector for Fiber Optic Cable Equipment    Straight microduct connector with transparent body for visual control when blowing microcable. Connectors can be reused for more than 10 times while still maintaining the same high performance characteristics - operational at 15bar (218 psi) and with quick burst rating of 25bar (363 psi). All connectors have two removable locking clips to prevent tube release.  Features:• Easy to use, robust, and high mechanical resistance• Easy installation and connection• The locking clip secures good connection• Superior characteristics for jetting microducts into duct while maintaining a high pressure resistance• Transparent plastic body, easy to oberve the situation• Watertight• Connections are watertight up to 5 meters below water surfaceWhere to be used: Straight Microduct Connectors are designed to provide simple, 2-click plug-and-play joining of microducts, enabling longer runs and safe pushing and pulling performance.Dimensions:Product codeDescriptionQuantity (PCS)/ CTNMSC-3/2.13mm straight connector, bore 2.1mm4500MSC-4/2.14mm straight connector, bore 2.1mm4500MSC-5/3.55mm straight connector, bore 3.5mm4200MSC-6/46mm straight connector, bore 4mm2400MSC-7/3.57mm straight connector, bore 3.5mm2400MSC-7/47mm straight connector, bore 4mm2400MSC-7/5.57mm straight connector, bore 5.5mm2400MSC-8/3.58mm straight connector, bore 3.5mm2400MSC-8/68mm straight connector, bore 6mm2400MSC-8.5/68.5mm straight connector, bore 6mm1680MSC-10/610mm straight connector, bore 6mm1680MSC-10/810mm straight connector, bore 8mm1680MSC-12/812mm straight connector, bore 8mm1200MSC-12/1012mm straight connector, bore 10mm1200MSC-12.7/1012.7mm straight connector, bore 10mm960MSC-14/1014mm straight connector, bore 10mm960MSC-14/1214mm straight connector, bore 12mm960MSC-16/1216mm straight connector, bore 12mm720MSC-16/1316mm straight connector, bore 13mm720MSC-16/1416mm straight connector, bore 14mm720MSC-18/1218mm straight connector, bore 12mm480MSC-18/1418mm straight connector, bore 14mm480MSC-18/1618mm straight connector, bore 16mm480MSC-20/1620mm straight connector, bore 16mm240MSC-22/1822mm straight connector, bore 18mm180we also have other series like below: /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
