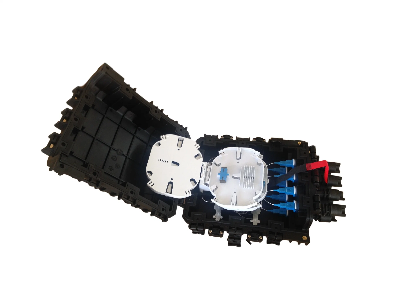

Fast Connector Exit Fiber Optic Splice Closure

GP01-H31JF4(8)-36C In-line Type Optic Cable Splice ClosureGP01-H31JF4(8)-36C optic splice closure is quick installed and reliable sealed closure. With engineering plastic in scientific formula, injection-molding,and excellent mechanical strength, it can prevent aging effectively caused by cold, hot, oxygen, UV etc.With flame retardant,waterproof,anti-vibrationand anti impact box, the closure could protect the optic cable joints from tensile ,impact,bending,flattening, twisting, and axial compression.All the sealing accessories qualified in the viscosity and white ants resistance test. Reliable sealing performance, convenient for repeated use.   ModelTrays  Tray capacityMax CapacityDimensionmm (biggest point)Entry port & Available cable dia. Raw materialGP01-H31JF4(8)-36C312c36 c319*248*1252 inlet & 2 outlet for φ8-φ12mm cable. 8 pcs SC adapter ports for 8 figure drop Cable 2*3 mmClosure body: P.P +GFTray: ABSSealing methodFull Mechanical sealing way, clip type lockApplication Pole/ wall mountingBending Radius > 40mmDurability25 yearsAvailable Splitter2pcs 1:4/2:4, or 1 pcs 1:8/2:8 Application:Widely used to connect or branch the outdoor optic cable fibers in aerial/pole/wall applications. Fully Mechanical sealing and re-open design,available for split with fast connectors without open the closure.Provide optional valve and earthling rod. Simple inner structured and easy to installation, is the best choice for the network construction.Technical Parameter:Working temperature:-40ºC~+65ºC.Atmospheric Pressure:62-106kPa.Axial Tension:> 1000N/1min  Stretching Resistance>2000N/10cm² (1min).Flatten Pressure: >2000N/100mm(1min)Insulationn Resistance:>2 × 104MΩVoltage Strength:15KV(DC)/1min,no arcover or breakdownTemperature Cycle:-40ºC~+65ºC,with inner pressure 60(+5)Kpa,cycle:10times, the decrease of pressure can't exceed 5Kpa at room temperature.Relating Producing Line:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
