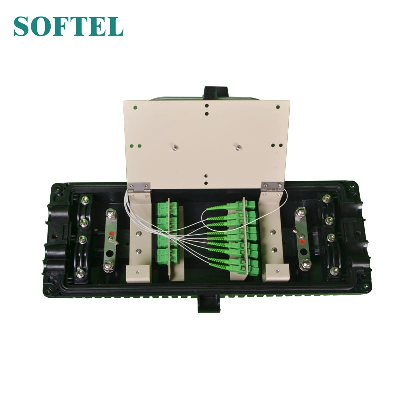

Supply Optical Fiber Joint Closure Fiber Optic Splice Closure

Supply Optical fiber joint closure Fiber Optic Splice ClosureDescriptionDimension and CapacityOutside dimension (Length x Width x Thickness)450x216x110 (mm)Weight (excluding outside box)2750g-3200gNumber of inlet/out ports2750g-3200gDiameter of fiber cableΦ48mm~Φ23mmCapacity of FOSCBunchy: 6-48(Cores)Main ComponentsNo.Name of components Quantity UsageRemarks1Housing1 setProtecting fiber cable splices in wholeInternal diameter:378x136 (mm)2Insert plate2 pairsFixing the housing175x56x30(mm)3Fiber optic splice tray(FOST)2 pieces Fixing heat shrinkable protective sleeve and holding fibersSuitable for:Bunchy:6,12,24(cores) 4Foundation1 setFixing reinforced core of fiber- cable and FOST 5Seal fitting1 set Sealing between FOSC cover and FOSC bottom 6Port plug6 piecesSealing empty ports 7Pressuretesting valve1 setAfter injecting air, it is used for pressure testing and sealing testingConfiguration as per requirement8Earthing deriving device1 setDeriving metallic components of fiber cable in FOSC for earthing connectionConfiguration as per requirementMain Accessories and Special ToolsNo.Name of accessoriesQuantityUsage1Heat shrinkable protective sleeve Protecting fiber splices2Nylon tie Fixing fiber with protective coat3Insulation tape1 rollEnlarging diameter of fiber cable for easy fixing4Seal tape1 rollEnlarging diameter of fiber cablewhich fits in with seal fitting5Hanging hook1 setFor aerial use6Earthing wire1 piecePutting through between earthing devices7Abrasive cloth1 pieceScratching fiber cable8Labeling paper1 pieceLabeling fiber9Special wrench3 piecesFixing bolts, tightening nut of reinforced core10Measuring paper1 pieceTo measure circle, of which its diameteris enlarged with seal tape11Buffer tubeDecided by customersHitched to fibers and fixed with FOST, managing buffer12Desiccant1 bagPut into FOSC before sealing for desiccating air.Characteristics1. Holds up to 96 fibers.2. Easy to re-enter3. Cable entry/exit ports4. Pressure testing valve and earth deriving device5. Intergrated seal, air tight and water proof6. Ideal for cable repair7. Can be used in through, branch or mid span splice locations8. Suitable for aerial, underground duct or direct burial applicationsMore productsCompany informationPackage & ShippingCustomer feedbackFAQ/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
