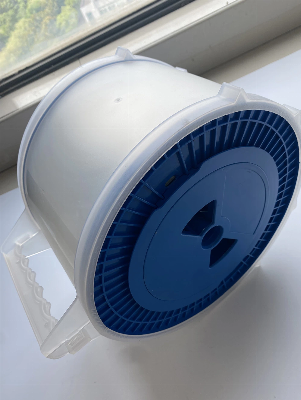

Conventional Single-Mode Optic Fiber G. 652. D

Product Description Conventional single-mode fiber is also called wavelength-band extended non-dispersion-shifted single-mode fiber, and the working wavelength can be selected1310nm, and optionally 1550nm, are the most widely used fibers.Performance Highlights1.Wider wavelength range, suitable for high-speed network.2. Accurate mode field diameter (MFD) characteristics ensure low splice loss and good compatibility.Application scenarios1. 100G and B100G high-speed long-distance long-span backbone network.2. Large-bandwidth metropolitan area network and access network. Product ParameterscharacteristicconditionunitNumerical valueOptical propertiesattenuation1310nm dB/km≤ 0.350 1383nmdB/km≤ 0.350 1550nm dB/km≤ 0.210 1625nm dB/km≤ 0.240 Relative wavelength attenuation change1310nm VS. 1285-1330nm dB/km≤ 0.04 1550nm VS. 1525-1575nmdB/km≤ 0.03 zero dispersion wavelengthnm 1300 - 1324 Zero dispersion slopeps/(nm2·km) 0.073 - 0.092 Dispersion1550nm ps/(nm·km)13.3 - 18.6 1625nm ps/(nm·km)17.2 - 23.7 Polarization Mode Dispersion Coefficient (PMD)--ps/√km ≤ 0.2Cable cut-off wavelength λccnm≤ 1260 Mode Field Diameter (MFD)1310nmμm 9.2±0.4 1550nmμm 10.4±0.5 decay discontinuity1310nm dB≤ 0.03 1550nm dB≤ 0.03 Attenuated bidirectional end difference1310nmdB/km ≤ 0.04 1550nmdB/km ≤ 0.04   geometric propertiesCladding diameterμm 125±0.7 Cladding out-of-roundness% ≤ 1.0 Core/Pack Concentricity Deviationμm ≤ 0.6 Coating diameterμm 242±7 Cladding/Coating Concentricity Deviationμm ≤ 12 Warpagem≥ 4 Environmental characteristics (1550nm, 1625nm)Temperature Cycling Additional Attenuation-60ºC to +85ºCdB/km ≤ 0.03 damp heat aging additional attenuation85ºC,RH85%,30 daysdB/km ≤ 0.03 Water immersion aging with additional attenuation23ºC,30  days dB/km ≤ 0.03 Dry Heat Aging Additional Attenuation85ºC,30 days dB/km ≤ 0.03   Mechanical propertiesTension Screening *--GPakpsi average valuepeakN1.3 - 8.9 average valueN1.0 - 5.0 tensile strengthWeber probability 50%GPa≥ 4.00 Weber probability 15%GPa≥ 3.20 Dynamic fatigue parameter Nd----≥ 20   macrobending lossØ60mm×100 turns1550nmdB≤ 0.05 1625nmdB≤ 0.05 * Higher screening tension products are available   Detailed Photos  Company Profile     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
