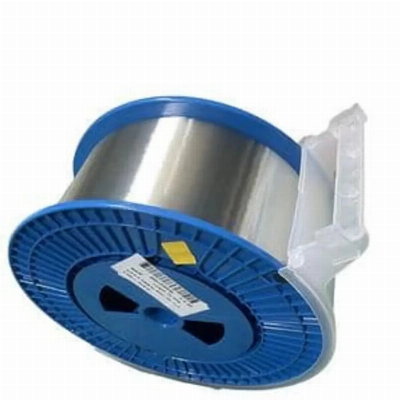

Manufacturer G652D Raw Material Sc APC Single Mode Fiber

Product DescriptionTypeBend Insensitive Single-mode Optical Fiber (G.657.A1/G652D)Standard The fiber complie with or exceed the technical specifications in ITU-T G.652.D /G.657.A1.FeatureSuperior anti-bending property;Fully compatible with G.652 single-mode fiber. Full band (1260~1626 nm) transmission;Low PMD for high bit-rate and long distance transmission. Extremely low micro-bending attenuation, applicable for all optical cable types including ribbons;High anti-fatigue parameter ensures service life under small bending radius.ApplicationAll cable constructions, 1260~1626nm full band transmission, FTTH high speed optical routing, optical cable in small bend radius, small-size optical fiber cable and device, L-band.Product ParametersAttributesspecificationDimensional SpecificationsCladding Diameter125.0±0.7 umCladding Non-Circularity≤0.7%Coating Diameter245±10 umCoating-Cladding Concentricity≤12 umCoating Non-Circularity≤6 %Core-Clad Concentricity≤0.5 umFiber Curl (radius)≥4 mDelivery Length2.05-50.4( km/reel)Optical SpecificationsMode-Field Diameter (MFD)1310nm8.7~9.5 um1550nm9.8~10.8 umAttenuation1310nm≤0.32dB/km1550nm≤0.18dB/km1625nm≤0.20dB/kmAttenuation VS. Wavelength1285-1330nm, Ref. λ@1310nm≤0.03dB/km1525-1575nm, Ref. λ@1550nm≤0.02dB/kmPoint Discontinuity1310nm≤0.05 dB1550nm≤0.05dBMechanical SpecificationsProof Test≥9.0N, ≥1.0%, ≥100KpsiDynamic stress corrosion susceptibility parameters Nd≥20Coating Strip ForceAverage1.5 NPeak1.3-8.9 NMacrobend Loss1 turn, Φ10mm@1550nm&1625nm≤0.5 dB,≤1.5 dB10 turns, Φ15mm@1550nm&1625nm≤0.05dB ,≤0.3dBWarrantyThe company produces and tests optical fiber independently, all qualified fibers meet the requirements of technical specifications.Packaging and storageEnsure no foreign matter on the reel and fiber surface, wrap it with film and cover, and label fiber coding on the reel and cover respectively. The packaged optical fiber is stored at a constant temperature of 25ºC in a light-proof warehouse. Detailed PhotosCompany Profile Our AdvantagesChoose us, won't make you disappointed:1.6years manufactory experience 2.OEM/ODM available3.Steady product quality4.Strict quality control5.Strictly conform to CE,ROHS,Iso90016.Quick delivery time(20ft,25days)FAQ1.Can I have some samples for testing quality? A1.Yes, you can buy some samples of any our products for testing quality and market. 2.What is delivery time if we place order? A2. It depends on order quanities. Usually,we can deliver goods within 15 days for small order. For more QTY, Let's confirm when you place official order. 3.Do you accept OEM/ODM? A3. We support OEM/ODM service.pls don't hesitate to tell us your details. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
