Hot Sale Singlemode Multimode Optical Fiber Cable Optic Fiber

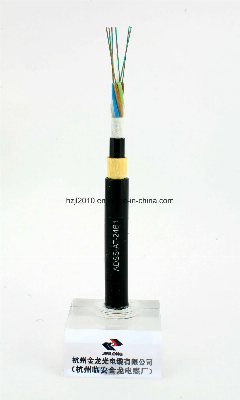

Hot Sale Singlemode Multimode Optical Fiber Cable Optic FiberPackaging & DeliveryPackaging Details: Wooden Drum for long term shippingDelivery Detail: 15~20 DaysSpecifications1. Non-metallic reinforcing element.2. PE or AT jacket3. Span: 100-1000m4. Areas of strong electric field, multi-thunderADSS optical fiber cableNonmetal Strength member, Self-supporting type, gelly filled, Polyethylene(PE) inner sheath,Kevlar reinforced, TR-PE outer sheath outer door optical fiber cable for telecommunicationTechnical characteristicsSelected high quality optical fiber ensure the optical fiber cable have excellent transmission properties The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties Very strict material and manufacturing control guarantees the cable can work stably for more than 30 years. Total cross-section water-resistant structure makes cable have excellent properties of moisture resistanceSpecial jelly filled in the loose tube provides the fibers with critical protectionThe central member adopted high young's modulus FRP member.Use all dielectric self-supporting high intensity aramid yarn or glass yarn ensures cableSelf-supporting, suitable for different climatic situation and installation spanIt has special TR outer sheath protection, strong anti-electro-corrosion ability with good anti-electromagnetism abilityFeaturesLayer stranding unit of loose tube structureNon-metallic central reinforcing element (FRP)Kevlar with high modular as reinforcing elementPE or AT jacketLightness, small outer diameter, no torsion, high tensile resistance and suitable for large span lengthHigh modular of elasticity, suitable for large stress-strainSmall thermal expansion coefficientExcellent electric erosion resistanceGood vibration resistanceFree from lightning, and electric-magnetic interruptApplication propertiesInstallation on the same pole or tower with high voltage power transmission line within 220kv.Not rely on electric phase wire or ground wire, can be executed on an electric circuit.Communication and electrical power transmission are different system; And the installation,Maintenance and repair can be operate with no influence on each otherCalculate out the electric field and sag accurately by computer to ascertain the best installation place.Optical Characteristics: Fiber SortMultimodeG.651A1a:50/125Graded-index fiberA1b:62.5/125SinglemodeG.652(A,B,C)B1.1:Conventional fiberG.652DB2: Zero  dispersion shiftedG.655B1.2 :Cut-off wavelength shiftedG.657(A1,A2 ,B3)B4: Main technical data for positive   dispersion shifted single-mode fiber     ItemsUnitABCDEFspanm100200300400500600Outer Dia.mm11.61212.312.512.813.8WeightPE sheathKg/km124.2131.1136.3141.4146.5165.9At sheath132.6139.9145.3150.7156176.3Cross areamm 2105.68112.7117.9123.07128.19150.21Area of strength membermm 25.6710.213.6217.0220.4326.1RTSkN8.515.320.425.530.639.1MOTSkN3.46.128.1610.212.2415.64EDSkN2.133.835.16.387.659.78Ultimate exceptional stresskN5.19.1812.2415.318.3623.46ModuluskN/ mm 28.4412.5215.2717.7920.1121.71Thermal expansion coefficient10 -6 /9.325.283.782.82.121.42Crush StrengthOperationN/10cm100010001000100010001000InstallationN/10cm220022002200220022002200Safety factor 2.52.52.52.52.52.5Min bending radiusOperationmm174180185188192207Installationmm290300308313320345TemperatureInstallation -10~+60-10~+60-10~+60-10~+60-10~+60-10~+60Transport -40~+70-40~+70-40~+70-40~+70-40~+70-40~+70Operation -40~+70-40~+70-40~+70-40~+70-40~+70-40~+70Sag(5mm ice loadPE%0.720.841.061.281.471.57Average 20)AT0.760.91.121.351.541.63ADSS with grade A sheath (Parts)Structure drawingOrder Type ModelADSS-PE 24 M15.5/ AADSS-PE48 M17.7 / CADSS-PE72 M21.2 / D Fiber count24fiber48fiber72fiberSize of tubeφ2.1mmφ2.6mmφ3.0mmCable diameterφ13.4mmφ14.9mmφ16.4mmCable weight139kg/km172kg/km209kg/kmRTS38.8kN44.3kN56.6kNLinear expansion coefficient2.2×10-6/°C2.0×10-6/°C1.8×10-6/°CYoung's modulus16.5kN/mm217.5kN/mm218.6kN/mm2Company Profile  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
