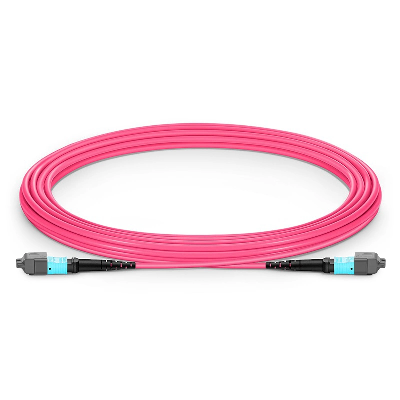

Om4 Multimode Elite MPO Trunk Cable 12 Fibers 5m (16FT)

OM4 Multimode Elite MPO Trunk Cable 12 Fibers 5m (16ft)MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. MPO Cable is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.Specifications Fiber Mode                                    OM4 50/125μm                            Wavelength                                850/1300nm40/100G Ethernet Distance150m at 850nm                            10G Ethernet Distance           400m at 850nmPolish Type      UPC to UPC                              Minimum Bend Radius          7.5mmInsertion Loss0.35dB Max (0.15dB Typ.)                  Return Loss                                 ≥20dBAttenuation at 850nm≤2.3dB/km                                Attenuation at 130                           ≤0.6dB/kmJacket OD3.0mm                                   Cable Jacket                                 Plenum (OFNP)Installation Tensile Load 66N                                     Tensile Strength (Long/Short Term) 80/240NOperating Temperature-10 to 70°C (14 to 158ºF)   Storage Temperature-40 to 85°C (-40 to 185ºF)  FeaturesSuperior Workmanship Guarantees Stable TransmissionMTP® connectors are the proven and trusted MPO style format offering state-of-the-art multi-fiber and mechanical performance.0.35dB Max. IL Delivers stable signal all the time and achieves flexible system design.   Integrated Push-Pull Sleeve Easier mating and unmating in extremely dense applications.   Protective Dust Cover Reduces the risk of connector damage and extends the use time.       /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
