Industrial Insertion SMT PCB Conveyor Assembly Line DIP PCB Handle Equipment

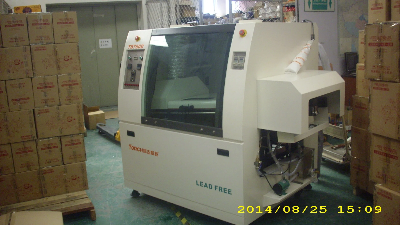

TORCH Chip Wave Soldering Automation for Mass Soldering of PCB TB780D Industrial insertion SMT PCB Conveyor assembly line DIP PCB handle equipmentFeatures and function:I. Flux spray systemA function of flux spray device1 nozzle: Import nozzle, better spray2 air system: AIRTAC electromagnetism valve, anti-corrosive pipe3 moving nozzle system: Air cylinder driven, spray speed and spray width can be adjusted by handle.4 filtration flux system: Collecting device is made of multi collecting lay, it is convenient to clean.5 flux controlling: Anti-corrosive controlling flux and display flux.B function of flux foam deviceWith foam function, inner foam pump, it don't need outer air supply, it isConvenient to spray flux1 preheating temperature range: Room temperature_260C2 controlling way: With PID controlling to make welding process.3 Heat: Infrared heating, temperature uniformity, rapid speed, PID supply heat.4 Preheating security: Surface temperature is lower than fire point of flux.5 Preheat: It can meet preheating need of batch PCB welding, uniformity temperature, small temperature differences of PCB.II Welding system features:1 Material: 316 stainless steel2 Capacity: 100kg double wave crest capacity3 Height range of wave crest: 0_8mm adjustment and keep wave crest balance.4 Power consumption (heater): 6kw, uniformity heat, long life. It will take 1 hour to melt tin. This can save 6kw during melting tin and save 3kw during constant temperature.5 Unique nozzle: Double wave crest design, with unique flat wave which is stable and reduce SMD leaking solder.6 Heat controlling system: PID control, accuracy is ± 27 Moving tin pot: In and out can be finished by hand.8 Motor of wave crest: Import motor, running stable.9 Tin pipe: Screw thread stemCooling systemCooling motor: Unique cooling design, it can achieve import device effect.IV Transmission system1 chain: Stainless steel chain, anti-corrosive, ametabolic.2 rail system: Special strong aluminum3 speed: 0_1800mm/min4 accuracy: Motor is from Taiwan, it is easy to adjust and maintain.V Controlling system1 buttons on the panel: Manual/ automatic control, speed can be set, temperature can be display.2 protect short circuit: With short circuit protection, with Sanling air switch protection in main power and tin pot of preheating zone, with fuse power in controlling system.3 urgent stop protection: There are 2 urgent stop protection in the machine, please cut off power in urgent condition.4 whole machine controlling: Relay controlling.5 transmission speed: Taiwan motor makes sure stable speed.6 wave crest: Taida transducer makes wave crest flatter.7 over-current protection: Over-current protection with transducer, it will cut off power when current is over to make motor safe.8 modularization wiring device: There are main wiring modularization and controlling modularization. solder typelead / common solder2max PCB50-200mm3Components heightAbove ≤ 130mm under ≤ 8mm4Capacity100KG5Preheating length600mm6temperature accuracy± 27spray wayFoam8temperature rangeroom - 3009wave height0-8mm, keep balance wave crest10heating controllingPID11speed0-1800mm/min12start power/normal power12KW/6KW13preheating temperatureroom-260C15Width adjustManual adjusting16Transmit angle3-817Directionright→ left18controlling accuracyTaiwan motor19Weight (Kg)650KG20Dimension L x W x H(mm)1400*1000*1500MMit is 2100mm when the machine include loading and cooling system. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
