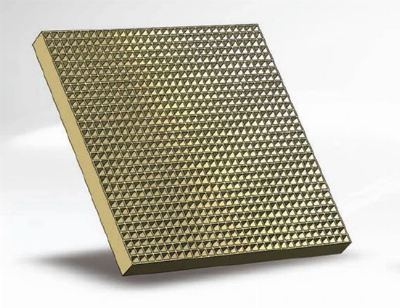

Micro Pore Optic (MPO) is a kind of grazing incidence optical element, which can focus high-energy rays, such as X rays, ultraviolet light. MPO is a type of thin slice glass with porous structure. MPO is made up of millions of square shaped pores. The micro pore size is in micron scale and the surface of their inner wall has very low roughness. The shape of MPO can be divided into two classes: plane and sphere. The planar MPO can converge to the astigmatism, while the spherical MPO can converge to the parallel light. So far, in all known optical components of X ray, MPO not only guarantee the large field of view and high resolution, but also has the smallest volume and weight. In order to get the best focusing effect, we can coat surface of the micro pore's inner wall with increasing reflective film, different application bands using the different film materials.Specifications:Pore size(microns):10,20,100,customizedPacking: square packed,radially packedBoundary dimension: ≤50mm×50mm;○≤60mm, customizedThickness(mm): 1,2,3,customizedShape: plane,sphereRadius of curvature(mm): 100,150,750,others tbdFilm materials: Aluminium,Nickel,customizedSquare hole , Focus , LightweightLarge field of viewHigh resolutionApplications:Aerospace navigationDeep-space detectionX-ray astronomySafety inspection systemMilitary reconnaissanceX-ray imaging/counting detection All the specifications can be customized. OEM is welcome to us, pleae contact us for your details /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
