Product DescriptionSimplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.Duplex Flat Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized. Duplex Round Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized. Duplex Zip Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a āzipcordā construction. The cable is unconnectorized. Product ParametersPhysical PropertiesFiber CountCable TypeNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)1Simplex 2.0mm7.65.102.00.079490/110290/651Simplex 2.5mm7.85.232.50.098490/110290/651Simplex 2.8mm8.05.372.80.110490/110290/651Simplex 3.0mm8.25.503.00.118490/110290/652Duplex Flat28.018.794.0X6.80.157X0.267980/220580/1302Duplex Round18.412.354.20.165980/220580/1302Duplex Zip15.010.072.4X4.80.094X0.188980/220580/130 Mechanical Properties Minimum Bending Radius:Under installation:20hODDuring operation:10hODTemperature Range:Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF) Maximum Compressive Load:2000NRepeated Impact: 2.9 N.m (J)3h2 impactsTwist (Torsion):180h10 times, 125hODCyclic Flexing:25 cycles for armoured cables.; 100 cycles for unarmoured cables.Crush Resistance:875N/cm (500lb/in) Fiber Compliance Temperature CyclingIEC60794-1-2-F2Repeated BendingIEC60794-1-2-E6Tensile StrengthIEC60794-1-2-E17ATorsionIEC60794-1-2-ECrushIEC60794-1-2-E3KinkIEC60794-1-2-E10ImpactIEC60794-1-2-E4Cable BendIEC60794-1-2-E11 Cool BendIEC60794-1-2-E11 Safety Compliance General Purpose GradeFlammability Test: OFN (UL1581)Riser GradePlenum GradeFRPVC GradeLSZH Grade LSFROH Grade FR GradeFlammability Test: OFNR/FT4 (UL1666)Flammability Test: OFNP/FT6 (UL 910)Flammability Test: IEC60332-1Halogen Content Test: IEC 60754-1Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2Halogen Content Test: IEC 60754-1Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2Flammability Test: IEC60332-1 & IEC 60332-3C/AFire Resistance Test: IEC 60331 / BS 6387 CWZ Detailed PhotosCompany ProfileABOUT USZhejiang Hanli Cable Co., Ltd. is a professional manufacturer of tv cables and cable television network equipment. It has more than 300 employees, including 100 engineers with college degree or above, and more than 50 directly engaged in high-tech and new product research and development. And has a production site of more than 38,000 square meters, 12 domestic and imported production equipment, and a number of advanced cable testing equipment. The company's leading products include SYWV(Y)-75 series physical high foaming RF coaxial cableRG series access network coaxial cableSYWLY-75 series aluminum tube cable,digital communication cable and digital monitoring lineetc sold abroad. The company's technology center mainly develops new productsnew processes and new technologies, and has successively developed more than 30 provincial-level new products of which 26 have obtained national patents,and ten products have been identified as high-tech products in Zhejiang Province. This project was identified as a National Torch Program project. In the futurethe company will continue to develop new products and new processes to meet the high-tech and high-standard demands of the market.Our AdvantagesWelcome to visit our factory and get our samples. Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you. Choose us, won't make you disappointed: 1.20years manufactory experience 2.OEM/ODM available 3.Steady product quality 4.Strict quality control 5.Strictly conform to CE,ROHS,Iso9001 6.Quick delivery time(20ft,25days) FAQ1.Can I have some samples for testing quality?A1.Yes, you can buy some samples of any our products for testing quality and market.2.What is delivery time if we place order?A2. It depends on order quanities. Usually,we can deliver goods within 15 days for small order. For more QTY, Let's confirm when you place official order.3.Do you accept OEM/ODM?A3. We support OEM/ODM service.pls don't hesitate to tell us your details. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e

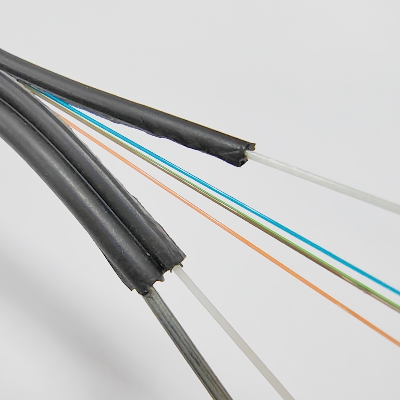

Related products about Wireless WiFi Computer Fiber Link FTTH Drop Wire Fiber Optic Cable
-
