GYXTW OEM Optic Fiber Cable Wire Supplier

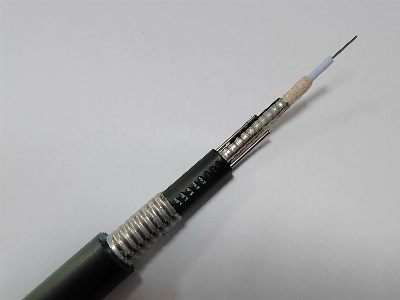

Product Description Optical Cables--Unitube Light-armored CableGYXTW Optical cable construction : The coloring fiber are positioned in a central loose tube, the PSP is longitudinal covering, parallel steelwire is inside the PE sheath, between steel strip and loose tube are filled with a waterblocking tape.The cable consists of 5 to 36 fibers containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each tube contains 4 -12 fibers. Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required. Either aramid yarn or fi ber glass is wound around the tube to provide physical protection and tensile strength. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. A ripcord is located under the jacket to facilitate jacket removal.Product ParametersPhysical PropertiesFiber CountNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)2-36110.073.83120.0.4722670/600800/18038-72120.080.5412.60.4962670/600800/18074-84135.090.6013.50.5312670/600800/18076-96150.0100.6714.00.5512670/600800/18098-108170.0114.0915.00.5902670/600800/180110-120190.0127.5215.50.6102670/600800/180122-132210.0140.9416.50.6492670/600800/180134-144230.0154.3617.50.6882670/600800/180146-216250.0167.7918.00.7082670/600800/180218-264300.0201.3419.50.7672670/600800/180266-312350.0234.9021.00.8262670/600800/180314-360400.0268.4622.50.8852670/600800/180    Physical Propertie Fiber CountNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)2-36210.0140.9415.00.5902670/600800/18038-72230.0154.3615.50.6102670/600800/18074-84250.0167.7916.50.6492670/600800/18076-96270.0181.2117.00.6692670/600800/18098-108295.0197.9817.50.6882670/600800/180110-120320.0214.7718.50.7282670/600800/180122-132355.0238.2619.00.7482670/600800/180134-144370.0248.3220.00.7872670/600800/180146-216390.0261.7421.00.8262670/600800/180218-264455.0305.3522.50.8852670/600800/180266-312515.0345.6424.00.9442670/600800/180314-360580.0389.2626.01.0232670/600800/180 Detailed PhotosCompany ProfileOur AdvantagesWelcome to visit our factory and  get our samples.  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.    Choose us, won't make you disappointed: 1.6years manufactory experience  2.OEM/ODM available 3.Steady product quality 4.Strict quality control 5.Strictly conform to CE,ROHS,Iso9001 6.Quick delivery time(20ft,25days) FAQ1.Can I have some samples for testing quality?A1.Yes, you can buy some samples of any our products for testing quality and market.2.What is delivery time if we place order?A2. It depends on order quanities. Usually,we can deliver goods within 15 days for small order. For more QTY, Let's confirm when you place official order.3.Do you accept OEM/ODM?A3. We support OEM/ODM service.pls don't hesitate to tell us your details.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
