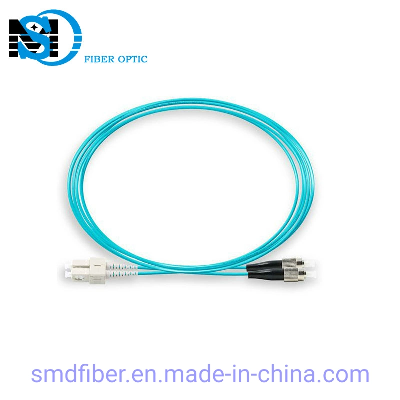

Duplex OM3 Fiber Optic Cable for FTTHFeaturesHigh quality ferrulesStrict quality testing: Insertion Loss and Return Loss 100% testedPVC, OFNR(Riser), OFNP(Plenum) and LSZH(Low-Smoke Zero-Halogen) jacket upon requestAvailable fiber cable OD: Φ0.9, Φ1.2, Φ1.6, Φ1.8, Φ2.0, Φ2.8, Φ3.0, etc.LC/SC/ST/FC/MPO/MTP/MTRJ/MU/DIN/D4/SMA and more connectorsWe welcome custom cable order per your specific requestApplicationsDesigned for fiber optic adapters, hubs, switches, routers, dsl/cable modems, patch panels and other deviceFiber optic system applications;FTTX distribution;Handle bandwidth-intensive applications.Specifications Fiber:Class A Multimode OM3Connector Type:SC to FCFiber Counts:DuplexHousing Material:Plastic (UL94V-0)Sheath:PVC/LSZHInsertion Loss:0.3dBOuter Diameter:3.0 mmReturn Loss:30dBCable Weight:8.2 kg/kmCladding Non-circularity:≤ 1%Bending Radius:0.25 to 0.75dB @1550nmCore/cladding Concentricity:≤ 6.0μmCrush Resistance:1000NMinimum bending radius:10x outside diameterFerrule Material:Ceramic (ZrO2)Typ.Attenuation @1310nm: ≤ 2.8dB/kmFerrule Polished:MultimodeTyp.Attenuation @1550nm:≤ 0.8dB/km/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
