Fcj FTTH Strength Member LSZH/PVC GJYXFCH Optic Fiber Cable

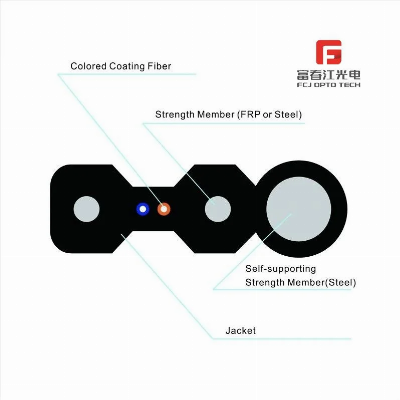

Description:Drop Fiber optic cables for telecommunication(Bow-type),suitable for optical fiber to the user (FTTH) network ,users to introduce the section of the cable, but also apply to the Office (FTTO) and optical fiber to the building (FTTB) ,and other optical fiber access network users to introduce the section of the optical cable.FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.The drop FTTH cables are with flame retardant jacket and with supporting wire, there are strengthen members inside the cables for supporting the whole cables, the whole cable meet the RoHS standards and contains no harmful components, in general, it is a highly recommended FTTH drop cables for use in the fiber to the home projects, saving time and cost.  Feartures:Good mechanical and environmental characteristics;The mechanical characteristics meets the requirements of relevants standards;Soft, flexible, easy to splice, and with big capacity data transmission;Meet various requirements of market and clients.Application:Used as access building cable.Used in horizontal and vertical cabling , especially used for FTTH.Indoor cabling  under  carpet and along corner.  Technical Parameters:                                       Fiber CountExternal diameter of optical cable (mm)Weight of optical cable (kg/km)Minimum bending radius (mm)Allowable minimum crush resistance (N/100mm)Allowable minimum drawing force of optical cable (N)  (kg/km)StaticDynamicShort termLong termShort termLong term1(2.0±0.1)x(5.4±0.1)202040220010006003002(2.0±0.1)X(5.4±0.1)202040220010006003004(2.0±0.1)X(6.4±0.1)20204022001000600300Order Information:Fiber CoreFiber TypeCountCable ODreinforcer Fiber JacketJacked Color1=G652D2=G657A13=G657A24=50/1255=62.5/1256=OM37=OM4X=otherS=simplexZ=zipcord  DuplexY=Round DuplexF=Flat  DuplexB=BreakoutD=DistributionR=RibbonA=ArmoredW=Waterproof  X=other001=1 core002=2 cores003=3 cores024=24 coresXXX=other01= 0.9mm02=2.0mm03=3.0mm04=2.9*6.0mm05=1.9*3.1mm06=4.2*7.6mm07=9.0mm08=11.2mm09=4.0*7.0mmXX=other1=Kevlar2=FRP3=Armoured steel tape4=Steel wire5= Armoured steel tape & Steel wire PR=PVC-OFNRPP=PVC-OFNPLH=LSZHPE=PEPU=TPULN=NylonHT=Hytrelxx=other01=Blue 02=Orange03=Green  04=Brown05=Slate ,06=White07=Red    08=Black09=Yellow   10=Violet11=Rose   12=Aqua13=12 Color XX=other/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
