Fcj Distribution Tight Buffer Fiber Optic Cable Gjpfjv

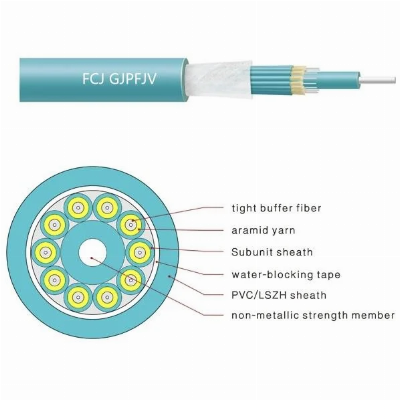

Description GJPFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.Characteristics·Each sub cable contains aramid yarn,good bend performance,without loose tube,cleaning friendly,easy construction and connection.·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.·The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor environment such as computer room, cable shaft and indoor wiring.·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the   indoor environment (such as wiring in the ceiling, open wire cabling etc.)Application·Indoor horizontal wiring, vertical wiring in buildings, LAN network.·Standard core can be directly apply to connectors,to use for device connecting.·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.Standards·GJPFJV cable complies with Standard YD/T1258.4-2009,ICEA-596,GR-409,IEC794 etc; and meets with the requirements of UL approval for OFNR.Optical Parameters  G.652G.65550/125μm62.5/125μmAttenuation  (+20ºC)@850nm  ≤3.5dB/km≤3.5dB/km@1300nm  ≤1.5dB/km≤1.5dB/km@1310nm≤0.45dB/km≤0.45dB/km  @1550nm≤0.30dB/km≤0.30dB/km  Bandwidth  (Class A)@850  ≥500MHZ·km≥200MHZ·km@1300  ≥1000MHZ·km≥600MHZ·kmNumerical Aperture   0.200±0.015NA0.275±0.015NACable Cut-off Wavelength ≤1260nm≤1480nm   Technical ParametersFiber CountCable DiametermmCable WeightKg/kmTensile StrengthLong/Short TermNCrush ResistanceLong/Short TermN/100mBending RadiusStatic/Dynamicmm2413.8±0.570500/1300300/100030D/15D4818.0±0.5150500/1300300/100030D/15D9625.0±0.5340500/1300300/100030D/15D12031.0±1mm530500/1300300/100030D/15DEnvironmental CharacteristicsTransport Temperature-20ºC~+60ºCStorage Temperature-20ºC~+60ºCInstallation Temperature-5ºC~+50ºCOperating Temperature-20ºC~+60ºC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
