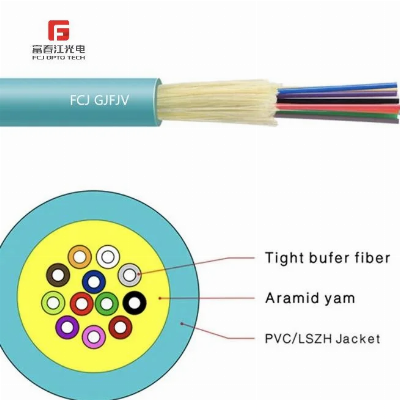

DescriptionGJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.CharacteristicsGood uniformity of the outer diameter of tight buffer fiber and excellent strippability. ·Good performance of flame-retardant ·Steady performance both in extremely high and low temperature. ·Excellent geometrical dimension of the fiberApplication·Data Communication ·Making connector ·Installation: Riser,Plenum,inter-layer,pipe & trunking ·Located in where waterproof isn't strictly required ·Patch cord, Pigtail & Indoor distributionStandards·GJFJV cable complies with Standard YD/T1258.2-2003,ICEA-596,GR-409,IEC794 etc; and meets with the requirements of UL approval for OFNR and OICable Code SXC-IIISXC-IISXC-ICable Diameter2.8±0.2mm2.0±0.2mm1.6±0.2mmCable Weight6.9kg/km5.9kg/km4.0kg/kmTight Buffer Fiber Diameter900±50μm900±50μm600±50μmTechnical ParametersTensile StrengthLong80N6050Short150N120100Crush ResistanceLong100N/100mm100N/100mm100N/100mmShort500N/100mm500N/100mm500N/100mmBending RadiusDynamic20XD20XD20XDStatic10XD10XD10XDOptical Characteristics G.652G.65550/125μm62.5/125μmAttenuation(+20ºC)@850nm ≤3.0dB/km≤3.0dB/km@1300nm ≤1.0dB/km≤1.0dB/km@1310nm≤0.36dB/km-- @1550nm≤0.22dB/km≤0.23dB/km Bandwidth(Class A)@850 ≥500MHZ·km≥500MHZ·km@1300 ≥1000MHZ·km≥600MHZ·kmNumerical Aperture 0.200±0.015NA0.275±0.015NACable Cut-off Wavelength ≤1260nm≤1480nm Environmental CharacteristicsTransport Temperature-20ºC~+60ºCStorage Temperature-20ºC~+60ºCInstallation Temperature-5ºC~+50ºCOperating Temperature-20ºC~+60ºC/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
