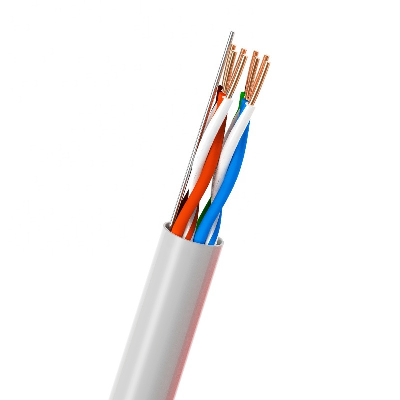

U/UTP Cat5e Bc PVC Twisted Pair Installation Cable

U/UTP CAT5E BC PVC Twisted Pair Installation CableConstructionConductor:24 AWG Solid Bare CopperPairs:4 PairsInsulation:0.91 mm HDPEInsulation Colors:Blue-White/Blue,Orange-White/OrangeGreen-White/Green,Brown-White/Brown   Rip Cord:CottonOut Jacket:5.1±0.2 mm  PVC CM Electrical CharacteristicsImpedance1 - 100MHz 100±15 OhmsInsulation Resistance>5000MΩ*KMDielectric strengthDC  2500V  2SMax.Conductor DC Resistance 20ºC9.5 Ohms/100mRes. unbalance (%)Max. 2.5Pair to Ground Capacitance Unbalance330 pF/100mTransfer ImpendanceMax 10 mOhms/m  @100MhzInstallation temp. -30 - 50ºCOperation temp. -20 - 75ºC Cross Section  Application•  Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and    ISO 11801 2nd Edition Class D channel standards.•  Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5    Category 5e component standards.•  Third party tested to Category 5e channel compliance.•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.•  Descending length cable markings enable easy identification of remaining cable    which reduces installation time and cable scrap.•  Color Availability: Additional cable colors available. Performance CharacteristicsFrequencyRL                     (Min.)Insertion Loss(Max.)Propagation Delay (Max.)Delay Skew(Max.)NEXT (Min.)PSNEXT (Min.)ELNEXT (Min.)PSELNEXT (Min.)MHzdBdB/100mns/100mns/100mdBdBdB/100mdB/100m120.02.2570.045.065.062.061.061.0423.04.2552.045.056.053.048.048.01025.06.5545.045.050.047.041.041.01625.08.4543.045.047.044.036.036.02025.09.3542.045.045.042.034.034.031.2523.611.6540.045.042.039.031.031.062.521.517.0539.045.038.035.025.025.010020.122.0538.045.035.032.021.021.0Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested. Order InformationsMarkingU/UTP CAT 5E 4PR 24AWG PVC CM XXX (or Per customer's request)Inner Package305m/Spool,305m/Reel (or Per customer's request)Outer PackageColor Box, Pallet (or Per customer's request)Delivery timeNormally 25 days after received the deposit.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
