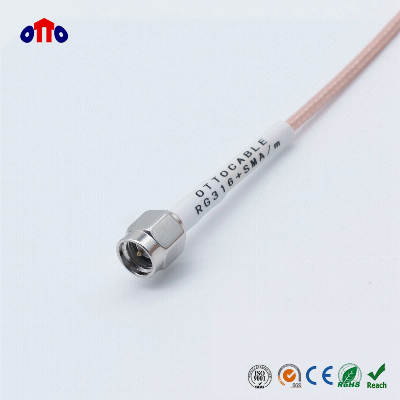

Rg316 Coax Cable Assembly with SMA Connector

JUMPER CABLE// Coax Cable AssemblyRG316 cable with SMA Male Straight to MCX Male Right Angle Connector / plug Cable type:RG316 Connector: SMA Male Straight, MCX Male Right Angle Cable Length: 30cm, 40cm, 50cm,....depends on customers requirements. This 50 Ohm RG316 coaxial cable can be equipped with varied connectors,such as SMA,SMB,MXC,N,BNC, TNC connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM  and other communication systems. Features 1).50 Ohm data signal transmission; 2).The inner conductor could be stranded or solid; 3).Special insulation materials,providing good electrical property and welding performance; 4).Small diameter is ideal for tight fit applications; 5).Customized cable color , winding and connector, meet your different requirements; 6).RoHS compliant; 50 Ohm cable RG316 and its various cable assemblies are all available in our factory. All of our products are RoHS compliant   Cable Spec: RG316 Coaxial CableConstructionItemMaterialDiameter(mm)Inner ConductorSliver Plated Copper Clad Steel7*0.17Dielectric PTFE1.52First ShieldSilver Plated Copper Braid1.98JacketFEP2.49 Electrical CharacteristicsAttenuation @20ºC (dB/100M)Impedance(Ω)50@200MHz36.1Velocity of Propagation(%)70@400MHz54.8Max Operating Frequency (MHz)3000@700MHz74.8Max Operating Voltage(VRMS)1000@900MHz86.3Operating Temperature(ºC)-55 to +200@1000MHz90.2----------@3000MHz155.2  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
