Optical Power Meter

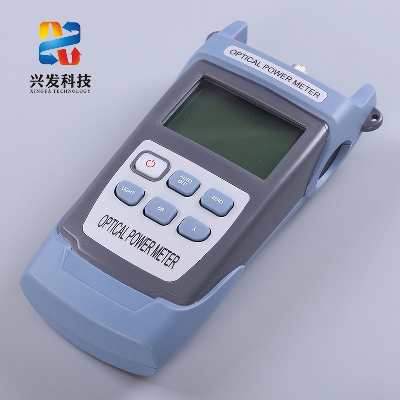

FeaturesSK3216 Handheld Optical Power Meter is newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with SK3116 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers. Compared with usual power meters, the SK3216 has more great functions/features of automatic wavelength identification and switching and intelligent backlight control. Also the SK3216 features good appearance, good touch feeling and considerate humanity design.Features* Wave ID-Automatic wavelength identification and switching (when used with SK3116 handheld light source)* Frequency ID/Tone detection---Automatic frequency identification*Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)* Data storage function, up to 1000 test records* USB communication port for saved testing records download* Reference power level can be set up and stored* User self calibration function* Auto-off function can be activated or deactivated.* AA alkaline and AC adapter for power supply* Low battery indication  SpecificationSpecificationsModelSK3216ASK3216CCalibrated(nm)wavelength850, 1300,1310,1490,1550,1625Detector typeInGaAsMeasurement Range(dBm)-70~+6-50~+26Uncertainty (dB)±0.15(3.5%)linearity (dB)±0.02Display resolution(dB)0.01Frequency ID(Hz)270,330,1K,2KWave ID(nm)1310,1490,1550,1625Date storage capacity1000Communication PortUSBOptical Connector typeFC,SC,ST interchangeableAlkaline battery3*AA,1.5VPower Supply Adaptor(V)8.4Battery Operating time (h)200Operation Temperature(ºC)-10~+60Storage Temperature(ºC)-25~+70Outline size(mm)/weight180*90*45(250g)Standard PackagesMODELINCLUDESAll SK3216 ModelsSK3216 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
