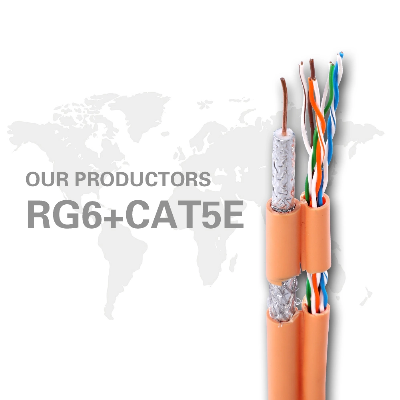

Cable specification75ohm Coaxial Cable 18 AWG 1.02Cu RG61.ConstructionCenter Conductor:1.02±0.01mm Solid Copper/Copper Clad SteelDielectric:4.57±0.05mm Foamed PEShield 1st:Bonded Al FoilBraid 1st:60% 0.16 or 0.12mm Aluminum WireJacket6.9mm+0.1mm pvc 2.CharacteristicsSparker Test:4000VACImpedance:75+/-3 OhmCapacitance:54+/-3pF/mVelocity of Propagation:85%Return Loss:20dB min (5-2300MHz)3.AttenuationAttenuation[@68oF. (20oC.)]Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)50.581.9501.54.91002.06.52002.89.24004.113.67005.618.49006.220.310006.521.414508.026.218008.527.921009.531.1225010.034.0U/UTP 4Pairs Cat.5E PVC/LSZH Jacket Lan CableTest StandardANSI/TIA-568-C.2,ISO / IEC 11801,IEC 61156,BS EN 50288Physical ParametersConductorMaterialSolid Bare CopperDiameter(mm)0.500±0.005InsulationMaterialHDPEDiameter(mm)0.89±0.05Core color1.white-blue/blue2.white-orange/orange3.white-green/green4.white-brown/brownSheathMaterialPVC/LSZHThickness(mm)0.55±0.05Diameter(mm)5.2 ±0.3ColorOptionalSurface printingLetter high(mm)3.0 ± 0.5Color Black/White Print error & Space ≤± 0.5% ,1mElectrical ParametersConductor Resistance (20ºC)≤9.38 Ω/ 100mElectrical Resistance Unbalance ( 20ºC)≤2.5 %Insulation Resistance>5000 MΩ·kmPair to Ground Capacitance Unbalance(0.8 KHz or 1KHz)≤160 pF/100mMutual capacitance of a pair≤5.6nF/100mTechnical PerformanceFeqMHZZinILRLNEXTPS NEXTELFEXTPS ELFEXTΩdB/100mdBdB/100mdB/100mdB/100mdB/100m1.0100±15≤2.04≥20.0≥65.30≥62.30≥64.00≥61.004.0≤4.05≥23.0≥56.27≥53.27≥51.96≥48.968.0≤5.77≥24.5≥51.75≥48.75≥45.94≥42.9410.0≤6.47≥25.0≥50.30≥47.30≥44.00≥41.0016.0≤8.25≥25.0≥47.24≥44.24≥39.92≥36.9225.0≤10.42≥24.3≥44.3≥41.30≥36.00≥33.1231.25≤11.71≥23.6≥42.89≥39.89≥34.12≥31.1262.5≤16.99≥21.5≥38.36≥35.36≥28.08≥25.08100≤21.98≥20.1≥35.30≥32.30≥24.00≥21.00Environment TemperatureStore0~40ºCWork-20 ~ 60ºCRemarka) The Cable can pass fluke test.b) Insulation Outer Diameter and Sheath Outer Diameter are for reference only.Cable photosCertificationsCable packing and shippingAbout usChoosing usOur Services 1) Quick Response --All inquiries will be replied within 24 hours. 2) Professional Quotation --All prices will be quote according to customers' detailed specifications & requirements. 3) OEM & ODM Service 4) Can print your own brand on the jacket printing with foot or meter marking. 5) Make customized designs for stickers, drums, outer cartons, etc. 6) Stable Quality --All materials and products passed restrict QC procedures,comply with international standards. 7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after Confirmation in usual. Good After-sales Service --We chose the fastest vessel to POD for delivery our goods to clients,--All Documents will be issued according to clients' instructions, to save troubles from local customs.--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.Similar productsContact infoRavenSales ManagerChina Hangzhou Xingfa Technology Co., Ltd.Address:NO.82 Tianzhu Street, Qingshan Industry Zone, Linan Hangzhou 311305, China /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
