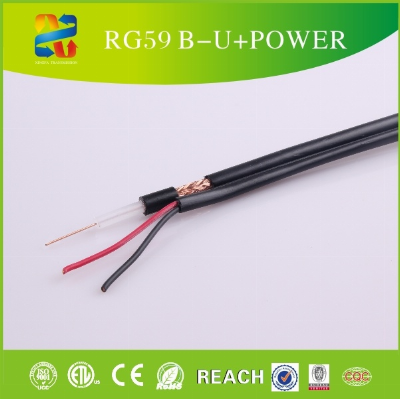

Professional Coaxial Cable Composite rg59 with power cable for CCTV Camera & DVR1.Product Description1) ConstructionCenter Conductor:0.81+0.01mm Solid Copper/Copper Clad SteelDielectric:3.66+0.05mmFoam PE/Solid PEShield:Al Foil/Bonded Al FoilBraid Coverage:40%-95%AlJacket:6.10+0.10mm PVCJelly/APDPer Customers Special RequirementPower cable2C*16*0.2mmCCA Power cable Power cable DielectricSolid PE 1.85mmPower cable Jacket:5.0mm2) CharacteristicsSparker Test:4000VACImpedance:75+3 OhmCapacitance:53+3pF/mVelocity of Propagation:85%Return Loss:20dB min (5-2300MHz)3) AttenuationAttenuation[@68o F. (20o C.)]Impedance75±3 OhmCapacitance16.0pF. /Ft. Nom.Velocity of Propagation66.7%Return Loss20dB min (5-860MHz)15dB min(860-2500MHz).Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)50.862.82551.956.391873.6011.812504.0013.113004.4514.63504.6415.214004.8816.004505.4017.725005.6018.365505.9019.346006.2020.347506.9722.878657.5224.6710008.1226.64 One-Jacket Siamese cable consists of two cables: 95 % coverage RG59U video cable and 2 conductor 18 gauge electrical cable all in one PVC jacketed cables. This type cable is great for use with CCTV equipment. All the wires you need to connect your camera are with in one cable. Therefore eliminating the need for two separate cables for the power and video. This cable is easy to run and it will look more esthetic when the installation is complete. It will also save you a considerable amount of time during installation.2.Packing:1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll 2) Inner Packing: Wooden reel, plastic reel, and paper reel 3) Outer Packing: Carton box, pull out box, pallet available 4) Other packing available according to clients' request3.About US We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.This is our factory pictures below.4.Other TypesBC: Bare Copper CCS: Copper Clad SteelTC: Tinned Copper CCA: Copper Clad Aluminum1) RG59 Coaxial Cable 75ohm Dual shield(standard)0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket2) RG59 Coaxial Cable 75ohm Tri-shielded0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Al Foil+6.10±0.10mm PVC Jacket3) RG59 Coaxial Cable 75ohm Quad Shield0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +6.70+0.10mm PVC Jacket4) RG59 Coaxial Cable 75ohm With Messenger 0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket+1.02mm Messenger5) Customers'specifications are welcomed/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
