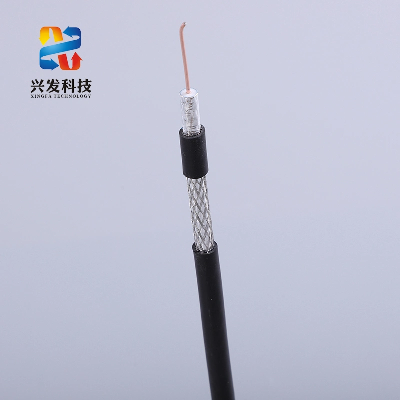

China RG6 Coaxial Cable with Free Sample

Coaxial Cable RG6 1. Specifications: 1) 1.02mmCCS +4.57mmFoamed PE +A/P(bonded)+60% AL Braiding + 6.91mmPVC 2) Customers' specifications are welcomed. 2. Characteristics: Impedance: 75+/-3 Ohm Velocity of Propagation: 85% Capacitance: 52 pF/m Return Loss: 20dB min Attenuation: [@68 F. (20 C) ] dB/100meters 5MHz: 1.90dB 500MHz: 15.09dB 55MHz: 5.25dB 600MHz: 16.73dB 83MHz: 6.40dB 750MHz: 18.54dB 187MHz: 9.35dB 1000MHz: 21.49dB 211MHz: 10.00dB 1450MHz: 26.16dB 250MHz: 10.82dB 1800MHz: 27.73dB 350MHz: 12.63dB 2100MHz: 31.15dB 400MHz: 13.61dB 2250MHz: 34.03dB 3. Packing: 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll... Other lengths available according to client's Request; 2)Inner packing: Wooden reel, plastic reel... 3)Outer packing: Carton box, pull box, pallet... 4)Other packing available according to client's Request. Coaxial Cable RG6/U, high performance follow Belden Standards. Inner conductor: 1.02mm (18AWG) BC or CCS Dielectric: Physical Gas Injected Foame PE 4.57mm Shealth 1st: Bonded/Unbonded Aluminum Foil or Al/Pet/Al Shealth 2nd: Braid, Al/BC/TC wire 0.12/0.15mm/0.16mm coverage: 40%-95% Jacket: 6.91mm PVC or PE Characteristic same as Belden and Commscope Standards. Inner Packing: Wooden/plastic drum/Cardboard Drum, Coil. Outer packing: Carton box, Pull out box.   1.Construction Center Conductor:1.02±0.01mm Solid Copper/Copper Clad SteelDielectric:4.57±0.05mm Foamed PEShield 1st:Bonded Al FoilBraid 1st:60%  0.16 or 0.12mm Aluminum WireJacket6.9mm+0.1mm pvc     2.Characteristics Sparker Test:4000VACImpedance:75+/-3 OhmCapacitance:54+/-3pF/mVelocity of Propagation:85%Return Loss:20dB min (5-2300MHz)3.Attenuation Attenuation[@68oF. (20oC.)]Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)50.581.9501.54.91002.06.52002.89.24004.113.67005.618.49006.220.310006.521.414508.026.218008.527.921009.531.1225010.034.04  Product pictures  5 Packing details1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel2) Inner Packing:Wooden reel,plastic reel,and paper reel3) Outer Packing:Carton box,pull out box,pallet available4) Other packing available according to clients' request6 Our company   FAQWhat kind of cable do you produce? We specialize in producing coaxial cable, telephone cable, speaker cable and so on.  What is your MOQ?  Usually, the MOQ is 10km.  What is your delivery time?   Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order. What is your payment term?   Usually, we accept T/T.Other payment, we can negotiate with customers. What is your manner of packing?  Inner Packing:100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll 305m (1,000ft) wooden reel, wooden drum, plastic drum Outer Packing: Wooden drum, carton box, pull out boxOr according to client's request.  Can you customize cables basing on customer's sample?   Yes, of course. Contract   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
