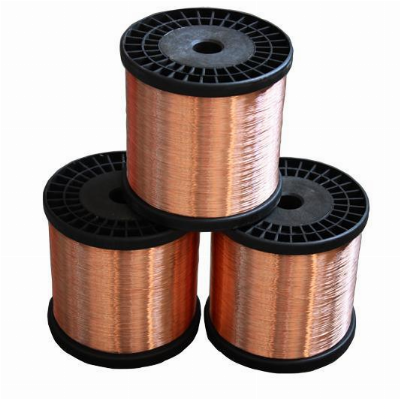

0.12-3mmcopper Clad Aluminum Magnesium Wire

0.12-3mmCopper Clad Aluminum Magnesium WireCopper clad aluminum wire is produced with the production process of cladding-welding- drawing method, by cladding planished copper stripe concentrically on the outer surface of the aluminium core, via several times of drawing and heat treatment, to meet customers' technical requirement on line diameter, mechanical property and electrical property. The copper clad aluminum wire characterizes by both the samll density of aluminum and the good conductivity of copper.   Name            Spec. Diameter CopperIn volumeCopperIn massConductivityTensileStrengthElongationDensityCCAM-D 0.12 -3.00mmCu < 10Cu< 26.8 ± 37%± 220 Mpa≥ 8 % 2.9 -- 3.0 g/cm3 CCAM-100.12-3.00mmCu-10 %Cu26.8-30% 55% - 57%± 180 Mpa≥ 10 %3.62- 3.7 g/cm3 CCAM-150.12 -3.00mmCu-15%Cu37-40% 57% ---59%± 190 Mpa≥ 10 %3.72- 3.8 g/cm3 Copper coated aluminum wire / cca wireThe CCA wire is made up by using pure aluminum wire as core. It adopts the advanced coating and welding technology in the world. Plating copper concentrically on the concentric line of aluminum, realizes metallurgy combination between copper coating and aluminum. Threr will be no falking off during the heat treatment or mechanical workout. the CCA is a best new bimetal wire instead of pure copper wire. Producible scope:t the diameter is from Φ01.0mm to Φ3.00mm.  Product Fearures: shiny & uniformity unlform copper layer, excellent electrical conductivity, bear bending, good tensile strength, excellent welding and corrosion, with the great light specific gravity, and savings resources of copper.  Main Application: flexible coaxial cable, a variety of audio and video cable,vehicle single cable, network cable,data transmission cables and so on. Can be used in the above cables: cable conductor, braiding and shielding, the single wire conductor and other conductors.   Construction Parameters: Nomial diameter Φ /mm0.2mm Diameter difference ±mm±0.004mm       Copper content %27 %   Density (20 ºC) g/cm33.3 g/cm3 Intensity test of the soft state ≥N≥3.7 N Tensile strength of soft-state≥N/mm2≥120 N/mm2                 Hard measured intensity ≥N≥8.4 N Tensile strength of hard-state≥N/mm2≥270 N/mm2      Electrical Characteristics:  Resistivity (20ºC) ≤Ω.km/mm2≤27.5 Ω.km/mm2   Measured resistance (20 ºC) ≤Ω/km≤875Ω/km  Conductivity (20 ºC) ≥%  ≥63 %                                    Soft-state elongstion≥%≥10 %   Hard elongation≥%≥12 %   Product Inspection:Inspection Item Standard Requirement (ASTM B 566-93)Inspection Result   1. Surface Bright, Clean, no flawOK  2. Diameter (mm)0.2(+/-0.004mm) OK  3. Tensile Strength (N/mm2) ≥120 N/mm2  OK  4. Elongation (%)≥10 %OK  5.  Density (g/cm3)3.3 (±0.03)g/cm3OK  6.  Resistivity (20ºC) ≤Ω.km/mm2≤27.5 Ω.km/mm2OK  7. Conductivity (%IACS)≥63 %    OKConclusionPass   Order Informations:  Technical Parameterbased on customer's requirements   PackagePlease advise the spool size or your special requirements   Delivery timeNormally 20-25 days after received the deposit.  Applicationbraid shielding & cable conductor (single or stranded) for coaxial cable, power cable, signal cable, network cable, data cable, enameled wire etc  More informations please contact with us.CCA WIRE   [Copper clad aluminum wire]   Diameter specification: 0.12 mm - 8.00 mm   Copper clad aluminum wire, commonly referred to as CCAW or CCA wire, is an electrical conductor composed of an inner aluminum core and an outer copper clad layer.   CCA wires are divided into hard drawn (H) and annealed (A). According to process, it can be divided into clad CCA wire and plated CCA wire.  Advantages: Under the same weight and diameter, the length of CCA wire is 2.6-3.2 times that of copper wire. According to pure copper wire, it is impossible to separate copper from CCA wire to keep thieves away. CCA wire is more ductile than copper wire. Unlike aluminum, aluminum produces insulating oxides, is easier to process, and has good electrical conductivity. 4. CCA wire is light in weight, easy to transport and install, reducing labor costs. CCA welding wire has significant social benefits and can save a large amount of copper raw material resources. Application: CCA lines are widely used for the transmission of cable TV signals and large-capacity communication network signals, control signal lines, welding lines, etc. High frequency signal transmission: 1. Select the conductor material of the cable TV coaxial cable; 2.50 Ω radio frequency (RF) cable; 3. Flexible RF coaxial cable inner conductor material; 4. Inner conductor materials of computer cables and other data cables; 5. Inner conductor material of ultra-fine coaxial cable; Power transmission: 1. Select the conductor material of the enameled wire; 2. Power cable conductor material; 3. Control cable conductor material; 4. Inner conductor of automobile and locomotive cables; 5. Building cable conductor materials; 6. Bus conductor material; 7. Fuse; 8. RF shielded cable network; Special electromagnetic
