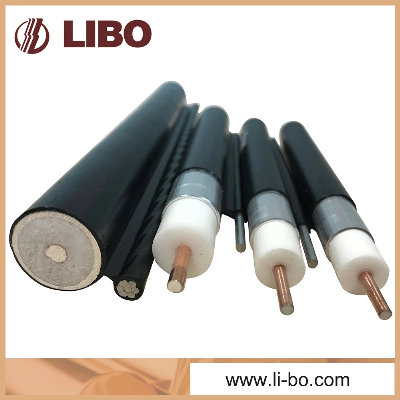

75 Ohm Seamless Aluminum 500 Trunk Cable with Messenger

Detailed Product Description   75 Ohm Seamless Aluminum 500 Trunk Cable with Messenger  Quick Details: 500 Trunk cable with MessengerSeamless aluminum tube as outer conductorPatented technologyOver 20 years of experienceHigh quality PE outer jacketAsphalt or flooding compound is availableOne of key OEM /ODM trunk cable suppliers in ChinaISO certfied factoryConflict Minerals Declaration Product description :( Aerial construction)This is seamless aluminum tube trunk cableSolid aluminum tube swaged onto dielectric core, fully bonded copper clad center conductor, medium density PE jacket, "figure 8" integrated messenger. Applications:P3 500JCAM109 trunk cables is manufactured with a seamless conforming aluminum outer sheath, it has is used for main cable of CATV system, such as base station and equipment cabinets, it is a lower-cost alternative to the traditional, corrugated copper coaxial cables. Shield:Solid aluminum tubeNominal outer conductor thickness: 0.024"(0.61mm)Jacket:Medium density PENominal jacket diameter:0.560"(14.22mm)Nominal Jacket thickness 0.030"(0.76mm) Center conductor:Copper clad aluminum (CCA)Nominal diameter: 0.109" (2.77mm) Dielectric:Micro-cellular foam PENominal diameter 0.450"(11.43mm) Outer conductor:Seamless aluminum tubeNominal diameter: 0.50" (12.70mm) Outer jacket:High quality PENominal diameter: 0.56"( 14.22mm) Messenger:Nominal diameter of steel messenger: 0.109"(2.77mm)Minimum breaking strength of messenger: 1800lbs (816KGf) Packing:Buyer's labels and cartons OEM/ODM desgin service is available. Mechanical characteristics:Minimum bend radius: standard=6.0"(15.2cm)Minimum bend radius: bonded=3.5"(8.9cm)Maximum pulling tension=300lbs(136KGf) Electrical characteristics:Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)Impedance: 75±2 ohmsVelocity of propagation: 87% nominalNominal DC loop resistance @68OF: 1.72 ohms/1000ft. (5.64 ohms/km)Attenuation@ 68OF(20oC):@Frequency MHZDb/100ft. (MAX.)dB/100 meters(MAX.)5MHZ0.160.5255MHZ0.541.7783MHZ0.662.17211MHZ1.093.58250MHZ1.203.94300MHZ1.314.30350MHZ1.434.69400MHZ1.535.02450MHZ1.635.35500MHZ1.735.67550MHZ1.825.97600MHZ1.916.27750MHZ2.167.09865MHZ2.347.681000MHZ2.528.27  Competitive Advantage:The trunk cable has excellent return loss, low attenuation. Asphalt is available for optional choice to prevent moisture and flood damage.Libo cable developed the world's first conforming seamless aluminum tube trunk cable.Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China. Good after sale service makes us outstand from others.Libo cable has a strong engineering team and stable workforce, the trunk cable is with short lead-time and stable high quality.Libo cable is equipped with a Provincial-level Research and Development Center.Libo cable is a nationally recognized Hi-tech Enterprise with ISO9001 and ISO14000 certifications./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
