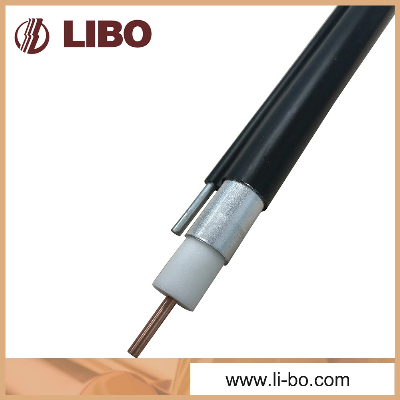

Seamless Trunk Cable Rg500 with Messenger

  Detailed Product Description    Aluminum Tube Trunk Cable 500 PE Jacket SCTE Feeder and Distribution Cable Quick Details:PIII 500 JCA trunk cableSeamless aluminum tube as outer conductorPatented technologyOver 20 years of experienceHigh quality PE outer jacketAsphalt or flooding compound is available   Applications:P3 500JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.Description: With 20 years of experience on producing high quality aluminum tube trunk cable, Libo's trunk cable meets with requirements of ANSI/SCTE standard.The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material. Mechanical performance:Minimum bending radius: 6.0 inches/15.2cmMaximum pulling tension: 300lbs /136kgf Electrical characteristics:Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)Impedance: 75±2 ohmsVelocity of propagation: 87% nominalMaximum D.C resistance @68OF:Structure Return loss: 24dB Physical dimensionscomponentinchesmmInner conductor0.1092.77±0.3diameter over dielectric0.45011.43diameter over outer conductor0.50012.70Outer conductor thickness0.0240.61Diameter over jacket0.56014.22Jacket wall thickness0.0300.76 Electrical characteristics:Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)Impedance: 75±2 ohmsVelocity of propagation: 87% nominalMaximum D.C resistance @68OF:Structure Return loss: 30dB Inner conductor: 1.35ohms/1000ft (4.43ohms/km)Outer conductor: 0.37ohms/1000ft (1.21ohms/km)Loop: 1.72 ohms/1000ft. (5.64 ohms/km)Attenuation@ 68OF(20oC):@Frequency MHZdB/100ft. (MAX.)dB/100 meters(MAX.)5MHZ0.160.5255MHZ0.541.7783MHZ0.662.17211MHZ1.093.58250MHZ1.203.94300MHZ1.314.30350MHZ1.434.69400MHZ1.535.02450MHZ1.635.35500MHZ1.735.67550MHZ1.825.97600MHZ1.916.27750MHZ2.167.09865MHZ2.347.681000MHZ2.528.27 Competitive Advantage:The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.Libo cable developed the world's first conforming seamless aluminum tube trunk cable.Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.Libo cable is equipped with a Provincial-level Research and Development Center./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
