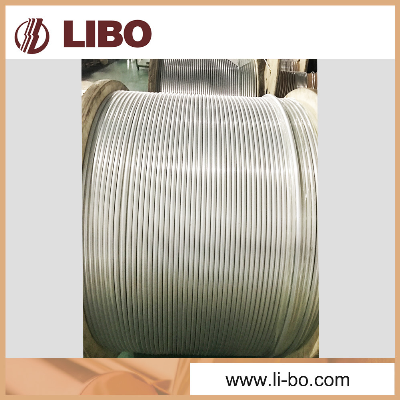

Detailed Product Description 500 Semi-Finished Trunk Cable Aluminum Tube Trunk Cable for feeder and distribution Quick Details: 500 semi-finished Trunk CableSeamless aluminum tube as outer conductor3KM per reel or as per customer's requestOEM/ODM service is available Product description:The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material. Applications: P3 500JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network. Physical dimensionscomponentinchesmmInner conductor0.1092.77±0.3diameter over dielectric0.45011.43diameter over outer conductor0.50012.70Outer conductor thickness0.0240.61 Mechanical performance:Minimum bending radius: 6.0 inches/15.2cmMaximum pulling tension: 300lbs /136kgf Electrical characteristics:Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)Impedance: 75±2 ohmsVelocity of propagation: 87% nominalMaximum D.C resistance @68OF:Structure Return loss: 22dB Inner conductor: 1.35ohms/1000ft (4.43ohms/km)Outer conductor: 0.37ohms/1000ft (1.21ohms/km)Loop: 1.72 ohms/1000ft. (5.64 ohms/km)Attenuation@ 68OF(20oC):@Frequency MHZdB/100ft. (MAX.)dB/100 meters(MAX.)5MHZ0.160.5255MHZ0.541.7783MHZ0.662.17211MHZ1.093.58250MHZ1.203.94300MHZ1.314.30350MHZ1.434.69400MHZ1.535.02450MHZ1.635.35500MHZ1.735.67550MHZ1.825.97600MHZ1.916.27750MHZ2.167.09865MHZ2.347.681000MHZ2.528.27 Packing:Buyer's labels OEM/ODM design service is available. Competitive Advantage:The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.Libo cable developed the world's first conforming seamless aluminum tube trunk cable.Libo cable has been OEM supplier for multi-national cable companies since 1994./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
