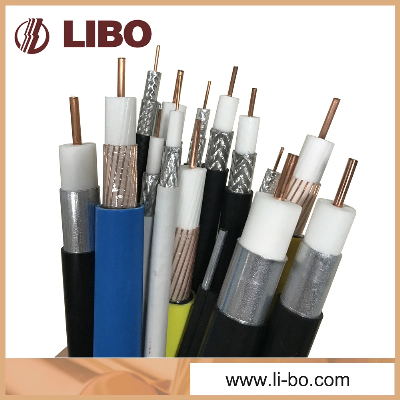

Communication RG6 Coaxial Cable for Indoor CATV / CCTV Systems

Detailed Product Description    Coaxial Cable Standard Shield RG6 CATV Cable Copper Clad Steel Conductor Quick Details:RG6 Coaxial Cable18AWG CCSPolyethylene InsulationBonded aluminum PET foil60% braiding coverageStandard- shieldPVC jacket Product description:21% conductivity copper clad steel (21%CCS).Dielectric core is insulating grade virgin polyethylene. The 1stshield is bonded laminated aluminum tape, the 2nd shield is 90% coverage braiding. The Jacket is PVC or PE for outdoor applications. Applications:RG6 tri-shield 90% coverage cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required. Center conductor:18AWG copper clad steelNominal diameter: 0.0403"(1.02mm)±0.01(0.0004) Dielectric:Gas expanded polyethyleneNominal diameter over dielectric: 0.18"(4.57mm) Shield:1st shield: bonded aluminum tape.2nd shield: 0.15 aluminum braid wire, 7ends x16 carry. 90% coverageMaximum ovality: 0.013" (0.33)Screening shield: >=85dB PVC Jacket:Nominal diameter over jacket: 6.90±0.15mmPacking:Buyer's labels and cartons OEM/ODM desgin service is available.  Electrical properties:Impedance : 75±3 ohmsVelocity of propagation: 82% nominalAttenuation@ 68OF(20oC):@Frequency MHZdB/100 meters(MAX.)555.2521110.1025011.2527011.4830012.1433012.7635013.1540014.1145015.0350015.9355016.7060017.7775019.6987021.33100022.97Competitive Advantage:RG6 standard shield cable has outstanding anti-interference effectiveness and excellent transmission reliabilities.RG6 standard shield cable is of low cost, and it is easy to install as well.Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.Libo cable has a stable workforce and engineering team, lead-time of 20'FCL is 5 days.Libo cable is equipped with a Provincial-level Research and Development Center, we offer OEM and ODM services./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
