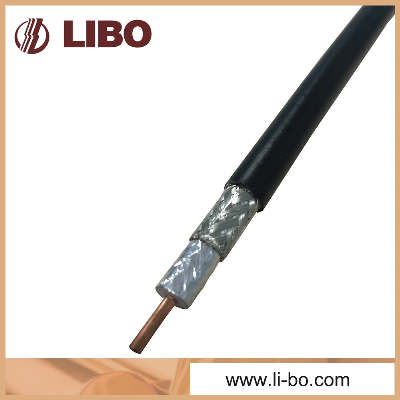

50 Ohm 7D-Fb Coaxial Cable for CDMA Telecommunication System

Bare Copper 7D-FB Coaxial Cable , PVC or PE Jacket 50 Ohm Cable for CDMA Telecommunication SystemApplications 7D-FB coaxial cable is used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, and aeronautics and space industry, precise instrument.   Description:7D-FB coaxial cable, bare copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, AL foil+ tinned copper wire as shield, PVC or PE for outer jacket. Specifications:                       construction  Testing itemUnitStandardInner conductormaterial-Bare Copperdiametermm2.60+/-0.01Dielectricmaterial-foamed PEdiametermm7.30mm1st shield, tapematerial-BAPA2nd shield, braidmaterial-Tinned copper wireElectrical propertiescoverage%85%jacketPVCmm9.800+/-0.2mmNominal velocity of propagation%82%CapacitancepF/M84Characteristic impedanceΩ50 +/-3V.S.W.R 1.25Attenuation20ºC(max) 150MHZdB/100m5.40200MHZ6.30280MHZ7.50350MHZ8.40400MHZ9.00800MHZ12.80900 MHZ 14.101200 MHZ 16.801500 MHZ 19.201900 MHZ 22.402000 MHZ 23.202400 MHZ 25.703000 MHZ 29.50 Competitive Advantage: Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
