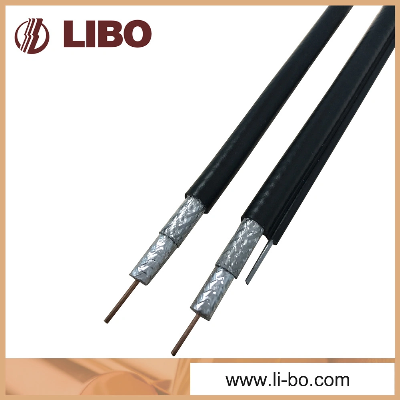

Rg59 Coaxial Cable for CCTV Ctav System with Black PVC Jacket

Detailed Product Description    75 Ohm Braid RG59 Standard Shield Coaxial Cable for CCTV  CTAV system with Black PVC Jacket Shield:1st shield: laminated aluminum tape bonded to the dielectric.Nominal diameter over tape: 0.151inches (3.84mm)2st shield: 34 AWG (0.12mm) aluminum braid wire. Product description:Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, aluminum wire braiding, Black PVC jacket. Center conductor:20AWG copper clad steelNominal diameter: 0.32inches (0.81mm) Dielectric:Gas expanded polyethyleneNominal diameter over dielectric: 0.144inches (3.66mm) Flame retardant PVC Jacket:Nominal diameter over jacket: 0.24inches (6.10mm)Nominal jacket thickness: 0.032inches (0.81mm) Electrical properties:Impedance : 75±3 ohmsVelocity of propagation: 85% nominalAttenuation@ 68OF(20oC):@Frequency MHZdB/100ft. (MAX.)dB/100 meters(MAX.)5MHZ0.862.8255MHZ2.056.7383MHZ2.458.04187MHZ3.6011.81211MHZ3.8012.47250MHZ4.1013.45300MHZ4.4514.60350MHZ4.8015.75400MHZ5.1016.73450MHZ5.4017.72500MHZ5.7018.70550MHZ5.9519.52600MHZ6.2020.34750MHZ6.9722.87865MHZ7.5224.671000MHZ8.1226.64 Applications:RG59 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.Competitive Advantage:Outstanding anti-interference effectiveness and excellent transmission reliabilities.low cost and easy to install.Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.Libo cable has a stable workforce and engineering team, the F5940BV cable is with short lead-time and stable high quality.Libo cable is equipped with a Provincial-level Research and Development Center./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
