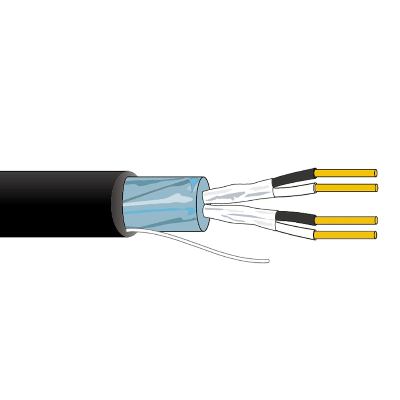

En 50288-7 Instrumentation Cable Collective Screen Armoured Lshf

 Instrumentation Cable  ApplicationLow Smoke Halogen Free paired instrumentation cables with mechanical protection for use in harsh environments, these cables can be used outside in process control applications including power generation, oil, gas, food and chemical works, in fact anywhere you want to run instrumentation cables where there is a risk of mechanical damage. Options include collective aluminium foil screen to prevent outside interference and individual & collective aluminium foil screens to prevent interference between the pairsStandardsEN 50288-7, EN 50288-1, EN 60228     Flame Retardant according to: IEC/EN 60332-1-2, IEC/EN 60332-3-24 Low Smoke Halogen Free according to: IEC/EN 60754-1/2, IEC/EN 61034-2  ConstructionPlain annealed copper wire conductors to IEC 60228, class 1, 2 or 5, PE insulation, laid up as cores or twisted into pairs, overall aluminium/polyester foil screen and 0.5mm² tinned copper drain wire Installation InstructionsInstallation Temperature: Above 0ºCOperating Temperature: -15ºC ~ 65ºCRated Voltage: 90V, 300V, 500VTest Voltage (DC): 2000V Between ConductorsElectrical PerfromanceMin. Insulation ThicknessConductor Size (mm2)Mini. Thickness (mm)Rated Voltage90VDielectric Strength300VDielectric Strength500VDielectric Strength0.50.2≥0.75KVac or ≥1.5KVdc0.26≥1.0KVac or ≥2.0KVdc0.44≥2.0KVac or ≥3.0KVdc0.750.20.260.441.0 0.260.260.441.50.30.350.44General CharacteristicsConductor Size (mm2)Conductor ClassMax. DCR (Ω/km)Max. Mutual Capacitance Values pF/mMax. Capacitance Unbalance Pairs/Quads Polyolefin (pF/500m)Max.L/R Ratio (μH/Ω)Polyolefin (nf/km)PVC (nf/km)0.5539.7150250500250.75526.5150250500251.0 519.8150250500251.5213.515025050040Product Parameters90V, Multi-pair, PE Insulated, Overall ScreenedNo. of PairsConductorInsulationThickness (mm)ScreenedSheathThickness (mm)OverallDiameter (mm)Size (mm2)Class10.52, 50.35Al-foil0.64.520.52, 50.35Al-foil0.76.930.52, 50.35Al-foil0.77.540.52, 50.35Al-foil0.88.350.52, 50.35Al-foil0.89.160.52, 50.35Al-foil0.910.180.52, 50.35Al-foil111.5100.52, 50.35Al-foil1.113.210.52, 50.35Al-foil + TC Braided0.75.320.52, 50.35Al-foil + TC Braided0.87.830.52, 50.35Al-foil + TC Braided0.88.340.52, 50.35Al-foil + TC Braided0.99.350.52, 50.35Al-foil + TC Braided0.91060.52, 50.35Al-foil + TC Braided111.180.52, 50.35Al-foil + TC Braided112.3100.52, 50.35Al-foil + TC Braided1.11410.752, 50.35Al-foil0.64.920.752, 50.35Al-foil0.77.630.752, 50.35Al-foil0.78.240.752, 50.35Al-foil0.89.150.752, 50.35Al-foil0.910.260.752, 50.35Al-foil111.380.752, 50.35Al-foil1.112.4100.752, 50.35Al-foil1.214.810.752, 50.35Al-foil + TC Braided0.75.720.752, 50.35Al-foil + TC Braided0.88.430.752, 50.35Al-foil + TC Braided0.99.440.752, 50.35Al-foil + TC Braided0.910.150.752, 50.35Al-foil + TC Braided111.260.752, 50.35Al-foil + TC Braided112.180.752, 50.35Al-foil + TC Braided1.113.7100.752, 50.35Al-foil + TC Braided1.215.5112, 50.4Al-foil0.65.5212, 50.4Al-foil0.88.9312, 50.4Al-foil0.99.8412, 50.4Al-foil110.7512, 50.4Al-foil111.7612, 50.4Al-foil1.113812, 50.4Al-foil1.214.81012, 50.4Al-foil1.317112, 50.4Al-foil + TC Braided0.86.5212, 50.4Al-foil + TC Braided0.99.8312, 50.4Al-foil + TC Braided0.910.6412, 50.4Al-foil + TC Braided111.5512, 50.4Al-foil + TC Braided1.112.7612, 50.4Al-foil + TC Braided1.214812, 50.4Al-foil + TC Braided1.315.81012, 50.4Al-foil + TC Braided1.317.811.52, 50.45Al-foil0.76.521.52, 50.45Al-foil0.910.431.52, 50.45Al-foil111.541.52, 50.45Al-foil112.451.52, 50.45Al-foil1.113.861.52, 50.45Al-foil1.215.381.52, 50.45Al-foil1.317.4101.52, 50.45Al-foil1.419.911.52, 50.45Al-foil + TC Braided0.87.321.52, 50.45Al-foil + TC Braided111.431.52, 50.45Al-foil + TC Braided112.341.52, 50.45Al-foil + TC Braided1.113.451.52, 50.45Al-foil + TC Braided1.214.861.52, 50.45Al-foil + TC Braided1.316.381.52, 50.45Al-foil + TC Braided1.418.4101.52, 50.45Al-foil + TC Braided1.420.7300V, Multi-pair, PE Insulated, Overall Screened No. of PairsConductorScreenedSheath Thickness (mm)Overall Diameter (mm) Size (mm2)Class10.52, 50.4Al-foil0.64.720.52, 50.4Al-foil0.77.330.52, 50.4Al-foil0.88.140.52, 50.4Al-foil0.88.750.52, 50.4Al-foil0.99.760.52, 50.4Al-foil110.880.52, 50.4Al-foil112.1100.52, 50.4Al-foil1.113.910.52, 50.4Al-foil + TC Braided0.75.520.52, 50.4Al-foil + TC Braided0.88.130.52, 50.4Al-foil + TC Braided0.88.740.52, 50.4Al-foil + TC Braided0.99.750.52, 50.4Al-foil + TC Braided110.760.52, 50.4Al-foil + TC Braided111.680.52, 50.4Al-foil + TC Braided1.113.1100.52, 50.4Al-foil + TC Braided1.214.910.752, 50.4Al-foil0.65.320.752, 50.4Al-foil0.78.330.752, 50.4Al-foil0.89.240.752, 50.4Al-foil0.910.150.752, 50.4Al-foil111.360.752, 50.4Al-foil112.380.752, 50.4Al-foil1.114100.752, 50.4Al-foil1.216.110.752, 50.4Al-foil + TC Braided0.87.520.752, 50.4Al-foil + TC Braided0.89.330.752, 50.4Al-foil + TC Braided0.910.240.752, 50.4Al-foil + TC Braided0.911.150.752, 50.4Al-foil + TC Braided112.160.752, 50.4Al-foil + TC Braided1.113.380.752, 50.4Al-foil + TC Braided1.215100.752, 50.4Al-foil + TC Braided1.317.1112, 5
