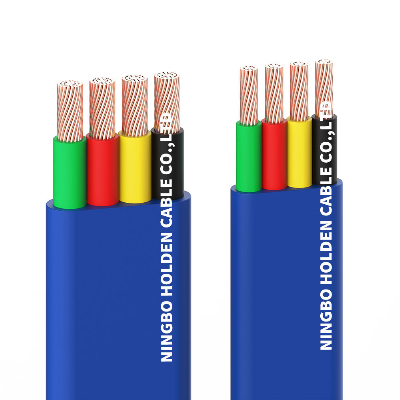

Flat Round PVC Rubber Electric Submersible Pump Wire Cable

* APPLICATION Used to connect electrical circuits of underground pump rated at 600 volts maximum circuit voltage rating and 75ºC maximum conductor thermal rating.* CONDUCTORThree soft drawn bunched/ropelay copper conductors. Available sizes are listed on the next page.* INSULATION Individual conductor is color-coded extruded with Polyvinyl Chloride (PVC) Lead Free. This Thermoplastic is flame retardant and resistant to heat, moisture and oil. * JACKETAssembled multi-conductor cable is extruded with Polyvinyl Chloride (PVC) Lead Free and then with Black Polyethylene (PE) for final protective covering. SIZE OF CONDUCTORNo.&Nominal Diameter of WirePVC Insulation ThicknessPE Insulation ThicknessApproximate overall diameternominal weight MM Approximate AWG   MM MM MM KG/KM 0.75MM2 18 30X0.18MM 1.2 1.6 12.36 161.83 1.25MM2 16 50X0.18MM 1.2 1.6 13.22 195.21 2.00MM2 14 37X0.26MM 1.2 1.6 13.87 229.28 3.5MM2 12 45X0.32MM 1.2 1.6 15.38 311.28 5.5MM2 10 70X0.32MM 1.2 1.6 16.68 399.55 8.0MM2 8 7X14X0.32MM 1.6 2.0 22.18 603.97 14MM2 6 7X25X0.32MM 1.6 2.0 25.21 865.69 22MM2 4 7X39X0.32MM 1.6 2.0 28.23 1179.65 30MM2 2 7X53X0.32MM 1.6 2.0 30.61 1477.37 38MM2 1 19X25X0.32MM 2.0 2.0 34.50 1899.96 50MM2 1/0 19X33X0.32MM 2.0 2.0 37.30 2352.93 60MM2 2/0 19X39X0.32MM 2.0 2.0 39.9 2713.35 80MM2 3/0 19X53X0.32MM 2.0 2.8 45.17 3574.58 100MM2 4/0 37X34X0.32MM 2.0 2.8 49.27 4330.96 125MM2 250MCM 37X42X0.32MM 2.4 2.8 54.46 5336.55 150MM2 300MCM 37X51X0.32MM 2.4 2.8 57.7 6266.27 200MM2 400MCM 61X41X0.32MM 2.4 2.8 63.96 8008.22 250MM2 500MCM 61X51X0.32MM 2.4 3.6 70.96 9874.79 Normal area(mm2)Structure(mm)Insulation thickness(mm)Sheath thickness(mm)Approx overall dia.(mm)3x1.522/0.30.81.15.5x11.63x2.536/0.30.91.26.4x13.93x4.056/0.31.01.37.1x16.13x6.084/0.31.11.48.0x16.03x10.080/0.41.31.610.0x23.43x16.0126/0.41.41.811.4x27.03x25.0196/0.42.02.215.0x35.43x35.0276/0.42.12.218.5x45.73x1.522/0.30.81.510.03x2.536/0.30.91.511.03x4.056/0.31.01.613.03x6.084/0.31.01.614.63x10.080/0.41.02.018.03x16.0126/0.41.22.022.03x25.0196/0.41.42.523.53x35.0276/0.41.52.527.0Other Hot ProductsFAQ1. Are you a factory or trading company?  We are a cable factory over 15 years, works with everything from the raw material to the finished product 2. Where is your factory?  Our factory is located in Shaoxing and Hangzhou 3. How can I get some samples?  We are honored to offer you samples for quality evaluation. 4. How does your factory do on quality control?   You order will be test 100% before packing and shipping or you also can arrange your QC department 5. What your delivery date?   15-30days after your kind deposit 6. Can you printing our logo on cable or packing?   Yes, available.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
