Telephone Cable Paper Covered Insulated Aluminium Wire

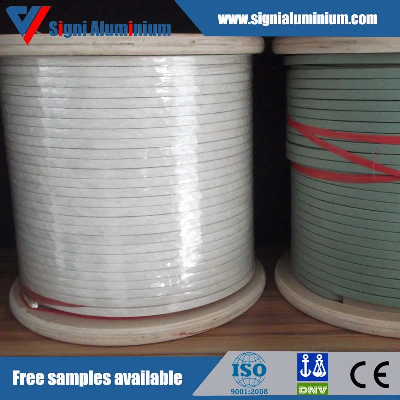

Telephone Cable Paper Covered Insulated Aluminium Wire Products: Paper covered wire by Electrical Aluminium Pole extrusion die by a certain size or drawn wire after annealing, and then in the aluminum conductor wrapped more than two or two insulating paper (including paper, telephone, cable paper, high voltage cable paper, turn insulation paper) of the winding wire, suitable for oil-immersed transformers and other electrical winding with a similar wire. Produced by the extrusion process electrical bare aluminum wire is wrapped production of the cable wire is the best material.   Production Range : 1.Telephone Cable Paper covered Flat Aluminum wire  Thickness: 1mm--7mm  Width: 3.0--20mm 2.Telephone Cable Paper covered Round Aluminum wire  Diameter: 1.9mm--10.0mm If required special size, please contact us.   Standard : IEC,NEMA,GB, JIS Package : 30kg/50kg/150kg wooden spool or according to customers requirements   Cable wrapped round (flat) line of insulation thickness shall conform to the following requirements or the provisions negotiated by the supply and demand : Paper covered round wire cable unit: m Nominal diameter of 1.000 ≤ d ≤ 5.00 Nominal Insulation Thickness (mm) 0.30 0.45 0.80 1.20 1.80 4.25 Tolerance (mm) ± 0.05 ± 0.05 ± 0.10 ± 0.12 ± 0.15 ± 0.30 Note: between the thickness between the two specifications, taking the deviation of the corresponding large size. Material: Aluminium flat wire shall comply with the provisions of GB5584.3-2009, 20 °C when the resistivity is not more than 0.0280Ωmm2 / m.   Curved line telephone cable wrapped round wire wrapped cable unit standard: mm Insulation Thickness / mm diameter test rod experiments 0.30 ≤ σ ≤ 0.80 winding 100 1.20 ≤ σ ≤ 4.25 150 Wrapped flat wire cable unit: mm Insulation Thickness / mm diameter test rod experiments 0.30 ≤ σ ≤ 0.80 broadside bending 150 1.20 ≤ σ ≤ 4.25 200   Product Name and Type Product NameTypeProduct NameTypeTelephone Cable Paper covered round copper wire stripZTelephone Cable Paper covered flat copper wire stripZBTelephone Cable Paper covered round aluminum wire stripZLTelephone Cable Paper covered flat aluminum wire stripZLB500KV transformer interturn insulation Telephone Cable Paper covered round copper wireZA500KV transformer interturn insulation Telephone Cable Paper covered flat copper wireZAB500KV transformer interturn insulation Telephone Cable Paper covered round aluminum wire stripZAL500KV transformer interturn insulation Telephone Cable Paper covered flat aluminum wire stripZALBStandard: Project NameStandardTest toolConductor size and R corner radiusFollow standard of GB/T7673.1-87Micrometer and R typeBendThe specimen is not cracked, no crack, no obvious sticking out of the Telephone Cable Paper, according to the standard curve.Experimental round rod and flat wire bending apparatus Telephone Cable Paper Covered Round Wire Insulation ThicknessStandard Insulation Thickness(mm)0.30.450.801.201.804.25Tolerance(mm)±0.05±0.05±0.10±0.12±0.15±0.30Telephone Cable Paper Covered Flat Wire Insulation ThicknessStandard Insulation Thickness(mm)0.450.600.951.351.601.952.452.95Maximum Insulation Thickness(A-a)0.570.741.141.561.842.232.773.32Minimum Insulation Thickness(B-b)0.400.530.851.201.451.802.302.75    Application of Telephone Cable Paper covered aluminum wire :   Telephone Cable Paper covered aluminum wire is used in oil-immersed transformer and other similar electrical coil windings.   Specifications :   Telephone Cable Papers are applied with butt intercalation in the following manners : *2 Telephone Cable Papers- double butt intercalation- advanced 40-60%. *3 Telephone Cable Papers- triple butt intercalation-advance 28-38%.   Telephone Cable Papers are lapped in the following manners : *One Telephone Cable Paper applied with 47-49% overlap-equivalent to 2 Telephone Cable Papers. * One Telephone Cable Paper applied with 64-66% overlap-equivalent to 3 Telephone Cable Papers. *Two Telephone Cable Papers each applied in one of the above manners.   Note: If the maximum dimensions do not exceed the maximum size conductor with the specified maximum insulation thickness, insulation thickness allowed to exceed the specified value.     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
