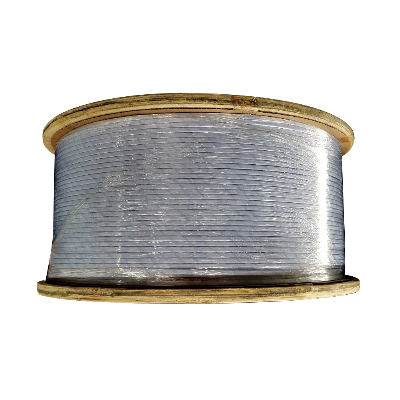

180 Degree Telephone Paper Covered Aluminum Winding Wire for Transformer

Product DescriptionPlace of Origin:Jiangsu, ChinaBrand Name: Baiwei ElectricModel :Continuously Transposed ConductoType: insulatedApplication:PowerTransformer, transmission lineConductor Material:Copper or aluminumConductor Type:SolidInsulation Material:EnameledProduct name:Continuously Transposed ConductorType enameled wire:round or flat enameled wireInsulation enamel:PEW, PIW, EIW, AIW, EI/AIWCovered material:paper or cotton wireTemperature class:120Standard:IEC,NEMA,GB,JISUsage:large transformer or transmission and distribution linesFeature:high strength, high temperature,Transposed wire is mainly used in the winding of large oil immersed power transformers,reactors and large capacity dry-type transformers.Continuously Transposed conductors(CTC)is the important material for transformer winding.It has the advantage of well using of space, low eddy current loss, high mechanical strength and less time of coil winding.Product ParametersProduction ScopeCTC strips:5-80(odd or even).Max overall dimension :height : 120mm , width 26mm ( tolerance ± 0.05mm )Dimension of enameled wire:Single conductor : Thickness a:0.90-3.15mm(tolerance±0.01mm ),Width b:2.50-13.00mm (tolerance±0.01mm)Suggested width/thickness ration of single conductor:2.0
