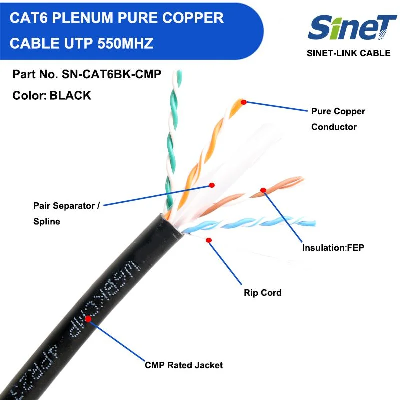

Enhanced CAT6 Plenum Cable - 550 MHz, Solid Bc, UTP

Product Description550 MHZ Cat6 Bulk Ethernet Network Cable UTP, Solid, PVC CMP, 23AWGThe next step up from standard Cat5e cable, Cat6 is a "twisted pair" network cable used for 1000Base-T Ethernet applications at speed of up to 550MHz of bandwidth. This cable is preferred for more advanced networking installations where a higher bandwidth than normal is required.Cable TypeCategory 6Shielding TypeUTPCable JacketPVC CMPCable Length1000ft (305m)Reference Bandwidth550MHzData Rate Support10/100/1000Base-TWire Gauge23AWGConductor TypePure Bare Copper WireConductor Diameter (mm)0.565 ± 0.005Cable Outer Diameter (mm)5.90 ± 0.40Maximum Installation Tension (N)110Bend Radius (mm)25.2Cable ColorBlueStandardISO/IEC 11801, ANSI/TIA-568-C.2Operating Temperature-20 to +75°C (-4 to 167°F)Installation Temperature-10 to +50°C (-14 to 122°F)   For more details, you can contact us to get the difference price and quality of each serie. Detailed Photos Our Advantages  What Is Cat6 Plenum Cable And Why It Is More Expensive Than Cat6 Riser Cable?For safety concerns, many users tend to buy flame-retardant cables, of which plenum cable and riser cable are the top two flame retardant classes that they may prefer. Cat6 cables are widely applied in these two classes among the Ethernet cable categories.So, what is the Cat6 plenum cable? What is Cat6 riser cable? Cat6 plenum cable vs Cat6 riser cable, why is the former more expensive than the latter? What Is Cat6 Plenum Cable?First, the CMP cable (Communications Multipurpose Cable, Plenum) is the most demanding cable in the UL fire protectionstandard-the safety standard is UL910. It is designed to restrict flame propagation to no more than five feet and to limit the amount of smoke emitted during a fire. Cat6 plenum cable refers to Cat6 CMP cable, which fits for installation into air plenum spaces. Normally, a Cat6 plenum cable jacket is made up of either a low-smoke polyvinyl chloride (PVC) or a fluorinated ethylene polymer (FEP).Where to Install Cat6 Plenum Cables?The Cat6 plenum cables are designed to provide pathways for return airflows of buildings, facilitating air circulation for heating and air conditioning systems. These Cat6 network cables are typically deployed in the air return pressure boosting system used in ventilation ducts or air handling equipment (above a suspended ceiling or under a raised floor, for example). Since the fire and smoke can travel and spread quickly through these plenum spaces full of fresh oxygen, which may cause damage to the furniture and threaten people's lives, the Cat6 plenum cables are essential to prevent the fire from spreading out.What Is Cat6 Riser Cable?Cat6 riser cable, also regarded as Cat6 CMR cable (Communications Multipurpose Cable, Riser), is the commercial-grade cable in the UL standard, applicable to the UL1666 safety standard. It is constructed to prevent fires from spreading floor to floor in vertical installations. Thus, it is generally used for floor vertical wiring. Unlike a Cat6 plenum cable, a Cat6 riser cable usually has a jacket covering made up of relatively inexpensive PVC.Where to Install Cat6 Riser Cables?Non-plenum cables can be used anywhere except plenum space and air ducts. Thus, Cat6 riser cable is typically installed between floors in non-plenum areas. It is the primary conduit of a building's distribution system, carrying voice, data, and video into the different spaces and levels of a building from the service entrance point. In both commercial and residential buildings, Cat6 CMR cables are needed when running cable between floors through risers or vertical shafts.NOTES for riser vs. plenum cables:* A plenum cable can be used in a riser space, but a riser cable generally cannot be used in a plenum space.* Using the wrong cable type may result in legal issues if a fire were to break out. If riser-rated cables are used in a plenumspace where CMP-rated cables should've been installed, smoke and fumes from burning cables could be swept into the HVAC systemand spread throughout the building, resulting in economic losses or even casualties.* When in doubt, consult the NFPA National Electrical Code. It will tell you which cable type can be used where.Cat6 Plenum Cable vs Cat6 Riser Cable: Why Is Plenum Cable More Expensive?Fundamentally, Cat6 plenum cables and Cat6 riser cables differ in safety standards. The former one meets the standard of UL910,which is the strictest standard, making plenum cables the most demanding. While, the latter one meets the standard of UL1666, not as strict as the former one. As mentioned before, since the requirements for riser cables are lower, plenum cables can be usually used as an alternative to riser cables, but not vice versa. Thus, some installers may choose to keep only plenum cable on hand to reduce storage requirements and streamline inventory.Here is a diagram of Cat6 plenum cable vs Cat6 riser cable typical applications:Cable Jacket MaterialCat6 plenum cable adopts low-smoke PVC
