12 Cores GYXTW Single Mode Optical Fiber Cable

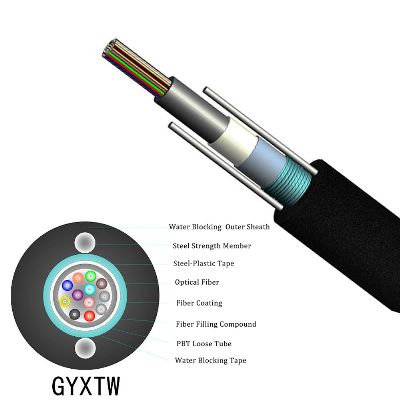

12 Cores GYXTW  Single Mode Optical Fiber CableMain application : 1.suitable for aerial,pipeline laying method 2.Long distance and local area network communication3.With small cable diameter, light cable weight, easily to lay.4.Rural communication, local trunk line, CATV & computer networks systemFeature : Low dispersion and attenuationProper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties Compact structure and lightness, flexible and good bend-resistant performance With small cable diameter, light cable weight, self-supporting To fill the single mode or multi-mode fibers into the PBT loose tube made of high modulus polyester.The inside of the tube is filled with water-proof compounds.The outside of loose tube is longitudinally wrapped with plastic coated steel tapes.Between the steel tape and the loose tube, water-proof material is filled to ensure the compactness and the water resistence of the cable.Two parallel steel wires are placed at the two sides of the steel tape. The steel wires are all inside the (PE) outer jacket.Workshop:  Fibercount Cabledia.(mm)Cable netweight(Kg/km)Min. bendingradius(mm)Min. tensilestrength(N)Min. crushpressure(N/100mm)Static stateDynamicstateShort termLong termShort termLongterm2-610.1104110220150060010003008-1210.61141102201500600100030014-2411.212812024015006001000300/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
