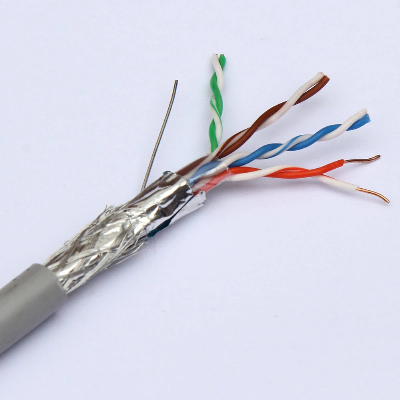

S/FTP Braid Over Unshielded Twisted Pair Cat5e

LAN CABLE S/FTP Braid  Over  Unshielded  Twisted pair  1.Conductor :0.5BC,0.51BC or CCA2,insulation:HDPE ID:1.0mm3,Twisted pairs.4,Shield:AM5,jacket :PVC,LZSH or PE6,Nominal diameter: 6.0±0.2mm 7,Average thickness: 0.55mm8,Messenger: Steel wire9.Frequency: 100MHz 10,Resistance Unbalance,maximum : 4.5%11,Mutual Capacitance :5.6 nF/100 m @ 1 kHz12,Dielectric Test: DC 2500V/2min at 20ºC13,Application: 100Base T4, 100Base-TX,100VG-AnyLan,1000 Base-T(Gigabit Ethernet),155Mbps ATM,622Mbps ATM. 14, Standard: international ISO/IEC 11801; USA ANSI/TIA/EIA-568B. 15,Operating temperature range: -20 to 75°C16,305meters pull box or 500meters wooden drum 17,OEM order is welcome  Frequency(MHz)Impedance(Ω)Attenuation(dB/100m)NEXT(dB) Nominal Velocity of Propagation1MHz85~1152.164      NVP 69%4MHz4.35510MHz6.64916MHz8.24620MHz9.24431.25MHz11.84262MHz17.137100MHz22.0 34  Welcome to visit our factory and  get our samples.  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.    Choose us, won't make you disappointed:1.6years manufactory experience 2.OEM/ODM available3.Steady product quality4.Strict quality control5.Strictly conform to CE,ROHS,Iso90016.Quick delivery time(20ft,25days)Contact:Name:  Carey zhu   Website: http://kuayuecable.en.made-in-china.com     http://kuayuecable.en.made-in-china.com/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
