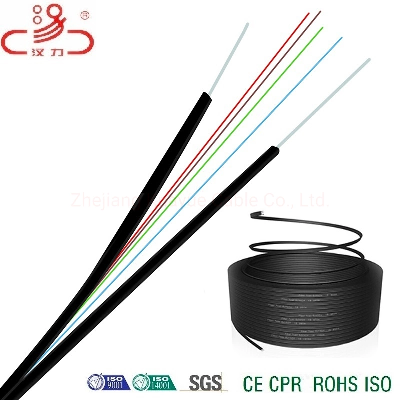

Optical Fiber Fig8 FTTH Dorp Wire

Simplex Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized. Duplex Flat Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized. Duplex Round Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized. Duplex Zip Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a āzipcordā construction. The cable is unconnectorized. Physical Properties Fiber CountCable TypeNominal Weight(kg/km)Nominal Weight(lb/kft)Nominal Outer Diameter(mm)Nominal Outer Diameter(in)Maximum Pulling LoadInstallation(N/Ib)In Service(N/Ib)1Simplex 2.0mm7.65.102.00.079490/110290/651Simplex 2.5mm7.85.232.50.098490/110290/651Simplex 2.8mm8.05.372.80.110490/110290/651Simplex 3.0mm8.25.503.00.118490/110290/652Duplex Flat28.018.794.0X6.80.157X0.267980/220580/1302Duplex Round18.412.354.20.165980/220580/1302Duplex Zip15.010.072.4X4.80.094X0.188980/220580/130 Mechanical Properties Minimum Bending Radius:Under installation:20hODDuring operation:10hODTemperature Range:Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)  Maximum Compressive Load:2000NRepeated Impact: 2.9 N.m (J)3h2 impactsTwist (Torsion):180h10 times, 125hODCyclic Flexing:25 cycles for armoured cables.;                      100 cycles for unarmoured cables.Crush Resistance:875N/cm (500lb/in)    Fiber Compliance Temperature CyclingIEC60794-1-2-F2Repeated BendingIEC60794-1-2-E6Tensile StrengthIEC60794-1-2-E17ATorsionIEC60794-1-2-ECrushIEC60794-1-2-E3KinkIEC60794-1-2-E10ImpactIEC60794-1-2-E4Cable BendIEC60794-1-2-E11    Cool BendIEC60794-1-2-E11     Safety Compliance General Purpose GradeFlammability Test: OFN (UL1581)Riser GradePlenum GradeFRPVC GradeLSZH Grade LSFROH Grade  FR GradeFlammability Test: OFNR/FT4 (UL1666)Flammability Test: OFNP/FT6 (UL 910)Flammability Test: IEC60332-1Halogen Content Test: IEC 60754-1Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2Halogen Content Test: IEC 60754-1Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2Flammability Test: IEC60332-1 & IEC 60332-3C/AFire Resistance Test: IEC 60331 / BS 6387 CWZ    Standard Compliance GR409-CORE                                       TIA/EIA 568B.3                                ICEA-S-83-596 Welcome to visit our factory and  get our samples.   Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.    Choose us, won't make you disappointed: 1.6years manufactory experience  2.OEM/ODM available 3.Steady product quality 4.Strict quality control 5.Strictly conform to CE,ROHS,Iso9001 6.Quick delivery time(20ft,25days)   Contact:   Name:  Carey zhu      Website:kuayuecable.en.made-in-china.com    http://kuayuecable.en.made-in-china.com   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
