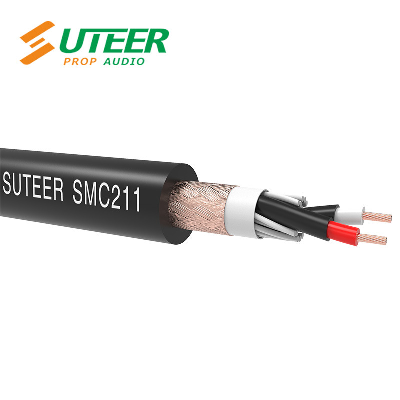

Application:The SMC211 is a high-quality microphone cable with an ultra flexible outer jacket. Semi-conductive PVC and braided shielding for optimum noise rejection, conductors built using OFC (oxygen free copper).This twin conductor cable can be used to transfer either balanced or stereo audio signals. Suited for use in recording studios and live performance where interference noise rejection is important.Features:2 x 0.22 mm² (24 AWG)Stranded Oxygen-free copperSemi-conductive PVC shieldingUltra-high density braided shieldingavailable in seven different coloursUltra flexible PVC outer jacket6.8 mm (Ø) outer diameterSpecifications:Construction Electrical characteristicsCable modelSMC211 Conductor resistance-100M≤ 7.9 ohmType of cableBalanced Microphone cable Capacity (C/C) @ 1kHz56 pF/mConductor materialBare stranded copper Mechanical characteristicsStructure of conductor20 x 0.12mm Temperature rangefixed installation: -40 °C to +80 °CConductor section0.23 mm2 flexible installation: -25 °C to +60 °CAmerican wire gauge24 AWG Bending radiusfixed installation: 6 x outer diameterInsulation materialPE flexible installation: 8 x outer diameterNumber of cores2 Insulation coloursRed / Blue Conductor twistingYes Shielding16 x 6 x 0.12 mm BC - Braided + Semi-conductive PVC FillingCotton yarn SeparatorTextile fleece Outer jacketFlexible PVC Outer jacket colorBlack matt Outer jacket dimensionØ6.8 mm /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
