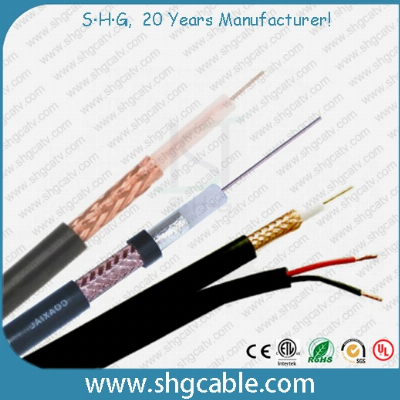

High Quality AV Assembly Coaxial Cable 3c 2V

SHG high quality CCTV coaxial cable 3C-2V,Used for interior lines for monitoring system, CCTV feeder lines, wiring between the camera and control unit and video signal transmission. PVC jacket. Certificates: ETL, CE, RoHS, ISO9001 3C 2V coaxial cable (Foam Type) Construction Center Conductor: 0.5+/-0.005mm Bare Copper Dielectric: 3.0+/-0.005mm Foam PE Shield: Aluminum Foil / Copper foil Braid: 40% - 95% Cu or CCA wires Jacket: 5.0+/-0.005mm PVC MIL standard 3C-2V coaxial cable (Solid PE Type) Construction Center Conductor: 0.5+/-0.005mm Bare Copper Dielectric: 3.0+/-0.005mm Solid PE Shield: Aluminum Foil / Copper foil Braid: 40% - 95% Cu or CCA wires Jacket: 5.0+/-0.005mm PVC 2) Characteristics Spark Test: 4000VAC Impedance: 75+3 Ohm Capacitance: 52+/-3pF/m Velocity of Propagation: 66% Return Loss 20dB min (5-2300MHz) 3) Assembly Assembly usually 3C-2V cable made plug with BNC or F connector. 4) Attenuation Sheet  Why choose us - see our cable workshop We, SHG produce the quality, we focus on quality in our over 20 years growing.    Certificates ISO9001:2008,  CE,  RoHS,  REACHOur AdvantagesWhy Choose usFAQFAQ Q1:  Are your company factory?       SHG:  Yes!  SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group.Q2:  Do you company offer OEM service?       SHG:  Yes! OEM available, your logo & reference on products & package available. Q3. What's your products lead time?    SHG:  Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received).Q4. Where is your nearest sea-port and airport?      SHG:  The nearest sea-port is Ningbo, Shanghai.                 The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge. Q5. What's your Payment Term?      SHG:  We perfer T/T.  30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method. Q6. Quality and Reputation:      SHG:  SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
