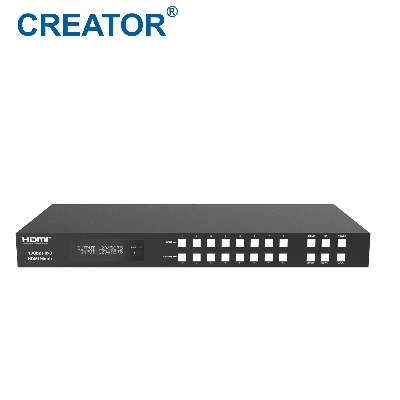

8 in 8 out 4K@60 HDMI Switch

Product OverviewThe 18Gbps 8x8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4K2K to 1080P downscaler independently.The control is via front panel buttons, IR remote, RS-232, LAN and Web GUI. Features· Compatible with HDMI 1.3b standard.· HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant;· Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports;· Support 18Gbps video bandwidth;· Dolby Vision, HDR10+ and HLG are supported;· Support 4K->1080P Down Scaler for each output port;· HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio);· Audio de-embedded is supported via analog and coax ports;· ARC, CEC and smart EDID management are supported;· 1U rack mounted design with front panel OLED display;· Control via front panel buttons, IR remote, RS-232, LAN and Web GUI. SpecificationsSystem Diagram Case StudyGambia International Convention CenterApplication Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.United Nations Conference on Trade and DevelopmentApplication products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.Brazil Federation of Industries of Sao Paolo (FIESP) Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.  Honors & Certificates/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
