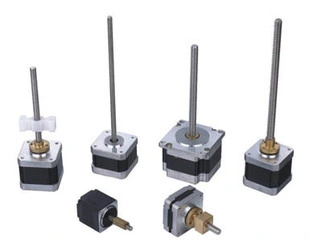

NEMA17 Hybrid Lead Screw Stepper Motor

NEMA17 Hrbrid Lead Screw Stepper MotorGeneral Specifications: (ITEM)(Specification)Step angle1.2°Tempareture Rise80ºC maxAmbient Temperature Range-20ºC- +50ºCInsulation Resistance100MΩ Min., 500VDCDielectric Strength500 VAC for 1s 3mAShaft Radial Play0.02 Max.(450g-load)Shaft Axial Play0.08 Max.(450g-load)Max. radial force28N(20mm from the flange)Max. axial force10N Electrical Specification:42HS34-0404YALPhase2 Step angle1.8degVoltage12vCurrent0.4AResistance30ohmInductance45m.HHolding torque2.4kg.cmShaft length283mm42HS40-1004YALPhase2 Step angle1.8degVoltage3.9vCurrent1AResistance3.9ohmInductance8.9m.HHolding torque4.8kg.cmShaft length293mm 42HS48-1684YALPhase2 Step angle1.8degVoltage2.8vCurrent1.68AResistance1.65ohmInductance2.3m.HHolding torque4.4kg.cmShaft length298mm Applications:Used for robots stepper motor, Electronic automatic equipment stepping motor, Medical instrument stepping motor, Advertising instrument stepper motor, Lighting& audio equipment stepper motor, Printer stepper motor, textile machinery stepper motor. Cnc router stepper motor.  Note: We can also manufacture products according to customer's requirements.Company Show:We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
