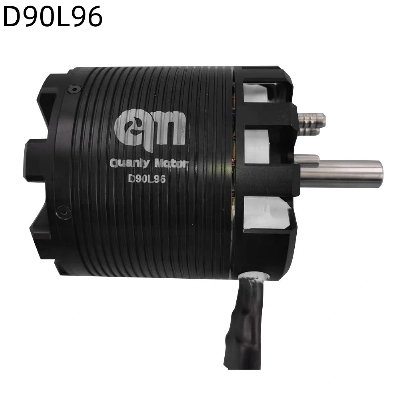

Qunly D90L96 Watercooled 20p Outrunner Brushless Motor 195kv 23kw Max.

 Product Description1 The motor rotor is designed with segmentation magnets, which reduce eddy currents in the magnets and generate less heat .2 The motor is designed for surfboard with water cooling and air cooling features, which allow rapid heat sinking from the motor. The case is made of light, high strength 7075 alloy with blaster and black anodizing to prevent it from oxidation and corrosion.3 The motor rotor is made with high magnets strength, the stator is made with very thin and high quality lamination, so the motor has very high efficiency and power/torque output .4 The stator and rotor are coated with anticorrosive paint. Quanly Outer rotor brushless motors use segmentation design with an external rotor that provides smooth, stable rotation. These motors are capable of achieving higher torque than its counterpart inner rotor designs. The higher inertia produced by external rotor motors makes them ideal for applications that require lower noise and reliable performance at lower speeds.Diameters at 90mmConfiguration: 24N20P OutrunnerSpeeds up to 14,070 rpmMaximum output power up to 23KWMaximum Torque output up to 26N*mHeat sink cooling fins designHigh-power densityLower cost of ownership Can be customized for - Sensor or sensorless- Winding Current- Shaft Options- Cable and Connector- Kv Ratings- Mounting Options- Encoder or Non    Product Parameters  VariantsD90L96-335D90L96-270D90L96-225D90L96-195D90L96-170D90L96-150Winding Turn & Connection4T5T6T7T8T9TVoltage Range(Cells of LiPo)6-10S (20-42V)8-12S (25-50.4V)10-14S(32-58.8V)10-16S (32-67.2V)12-18S (40-75.6V)12-22S(40-92.4V)Max Spin Speed(RPM)14,070 13,608 13,230 13,104 12,852 13,860 kV(RPM/V) 335270225195170150Kt(N*M/A) 0.03480.04250.05090.05960.06790.0764Current @8.4V without Loading(A)6.4A4.6A3.4A3.0A2.5A2.2AMaximum output power(KW)23.50 23.60 23.50 23.50 23.00 23.00 Peak current(A)820660550480415370Effeciency92%92%92%92%93%93%Max torque (N*M)25.0 25.0 25.6 26.0 25.0 25.5 Rating Torque@80% Efficiency(N*M) 16.5 16.8 17.8 16.8 16.3 16.0 Weight(kg)2.532.512.562.522.522.52Configuration24N/20PCooling SolutionWater Cooling + Air CoolingMax working temperature120ºCDimensionD90*L96.4 mmShaft extensionφ12*L40 mmLead wires extension160±5MMInsulation voltage & leak currentAC500V/10MA/3SLife Span10,000 hrsDrawing Dimension  Wiring Diagram  Auto Dyno Testing  Motor Efficiency NephogramAuto Test ReportItem No.C_Voltage(V)C_Current(A)C_Input Power(W)C_Power FactorC_Efficiency(%)M_Voltage(V)M_Current(A)M_Input Power(W)M_Power FactorM_Frequency(Hz)M_Efficiency(%)M_Speed(rpm)M_Torque(N*m)M_Output Power(W)Synthesis Efficiency(%)049.15000269.5999983416.8601070.998999.21447835.63000159.4000023390.020020.92491270.79003988.64007675913.7799953004.9162687.943787148.900002118.3399965784.9199220.999598.88105835105.7300035720.1899410.89241213.0200287.61782169166.9199955011.90576286.637428248.82142.2599956940.8999020.999596.2147634.759998126.6299976678.1699220.87591166.39001590.12345966248.5799955951.81591885.749916348.700001167.1300058134.3598630.999594.58765434.580002150.57694.1000980.85351150.90002487.982346632510.2199956769.44970783.220436448.57196.5800029544.6201170.999693.00055734.380001179.8000038876.5498050.82921140.4899987.005188598612.3199957723.05908280.915314548.459999221.52999910732.129880.999791.56392734.220001204.5599989826.7597660.81061122.46997185.998116570714.1399968450.82812578.743256648.3424811986.040040.999788.58288634.08000223010617.580080.7821097.585.137131542215.9199959039.5029375.416924748.07305.29998814669.080080.999685.98126233.73288.512612.660160.74821031.79003979.981689487019.77999510087.8183668.769264/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
