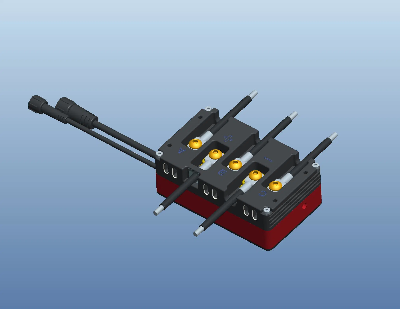

Hobiba Waterproof Marine ESC Brushless Motor Controller 150A 84V Sensorless

Product DescriptionThanks for choosing 150A series Marine Electronic Speed Controller (ESC) series developed and owned by Quanly.Due to the high-speed rotation of the motor, the brushless power system is a powerful dynamics. Improper use may cause personal injury, so we strongly recommend that you reading this instruction before use.The Quanly Company has rights to modify its products without any notifications, including its appearance and performance parameter, operating requirement etc.; Quanly does not make any guarantees, statements or commitments. However, it does not assume any responsibility caused by the modification of the third-party products; Quanly does not assume any responsibility arising from the application of the product, including compensation for direct or indirect losses.  Product Characteristics.Forward / Forward & Backward Mode OptionalMultiple motor Timing Angle selection, support most of the brushless dc motors on the marketProtections: Stall Protect, Motor and ESC Over Temperature Protect, Remote Control Signal Loss Protect, Battery Low Voltage ProtectEasy to operation LCD program card and PC software program, Online UpdatingWith 5V/1.5A BEC output  Product ParametersQuanly marine Waterproof ESC SpecificationModel No60v 150A-SL-WP84V 150A-SL-WPMax Continuous Current(A)150A150AMax Working Current(A)300A300ABEC Output  (V/A)5V/1.5A ,14V/200mA5V/1.5A ,14V/200mACompatible Motor D65L165,D70L165,D85L134D65L165,D70L165,D85L134Working Voltage/Lipo Battery(cells) Range30-60V/10-14S LiPo42-84V/14-20S LiPoNew Weight(kg)1.0Kg1.0KgWire Gauge to Motor8 Awg8 AwgDimension(mm)L118*W72*H44Wires to Receiver3 wires with waterproof connector Cooling SolutionHeat-sink Plate & Air CoolingIP GradeIP67ESC High Temp. Alarm100 Centigrade/AdjustableMotor High Temp. Alarm100 Centigrade/AdjustableReceiver SignalPPM,1-2ms  Drawing Dimension  Function Introduce* Operation Mode: Motor rotation direction setup Forward / Forward & Backward Mode Optional*Motor Timing: Extremely Low/ Low/Medium/High/Extremely High   Normally, Low Timing can fit for major motors. Due to the great difference in motor structure, please try any Motor Timing to obtain satisfactory      driving effect. In order to increase rotation speed, can set to High Timing mode, but the motor efficiency will be reduced and the heating will be faster. * Starting Acceleration: Super Soft launch/Soft/Accelerate As set to high acceleration ,the relationship between the rotate speed of motor and throttle is relatively linear. but high working current, Easy to cause current protection. Soft start and Super soft start both have low acceleration of rotate speed , even instantly throttle stick is pushed to the maximum position, motor from static to full speed need for a delay while.   * Low Voltage Protection Value: No protect/3.0V/3.1V/3.2V/3.3V/3.4VWhen the Battery Type is Lipo, ESC automatically calculates the number of lithium battery cells. For example, Using 12 cells of lithium batteries, Cut-off voltage set to 3.0V/cell, the Low Voltage Protection Threshold: 3.0*12=36.0VWhen the Battery Type is Nimh/Nicd, No need Low Voltage Protection.* Motor Direction: Forward and Backward rotationMost case, Motor forward and backward is generally achieved by change any two motor wires. When the motor wire has been soldered directly to the ESC, the motor can be changed direction by changing the setting value on the ESC. * Frequency Type: High/Low/snub If choose High frequency to Multipole motor and High RPM motor,the Motor will operate faster and smoothly, but the switch lost of ESC MOSFET will be great and MOSFET heat faster. With the excessively larger current, the MOSFET easy to burn out. So, we recommend to select low driving frequency as ESC work at high current . * Forward Speed Percentage: 20%/40%/60%/80%/100%  This setting limits the maximum forward speed.* Backward Speed Percentage: 20%/40%/60%/80%/100%  This setting can limit the maximum backward speed  Factory SettingsMinimum/Medium/Maximum Throttle Value, 1000/1500/2000 is factory settings.This value will change with the value of the remote controller when calibrate the setting of throttle .ESC/Motor Temperature Protection, when the temperature of ESC/Motor exceed the SET Value, ESC will reduce the speed by 50% and enter into protect condition. If turn off this function,ESC will keep working according to the throttle indication.Starting StrengthThe torque setting during startup. When the setting value is large, the startup torque is large and the initial speed is large. On the contrary, the startup torque is small and the speed is low.Motor shutdown and locked.When throttle return to nature and setup turnoff, the motor will follow the inertia and continue to rotate. When setup open, the motor will brake and stop rotating immediately.Demagnetization compensation,When motor accelerate faster and working on large current will cause the coils of motor of demagnetization for an extended period and rotation is not
