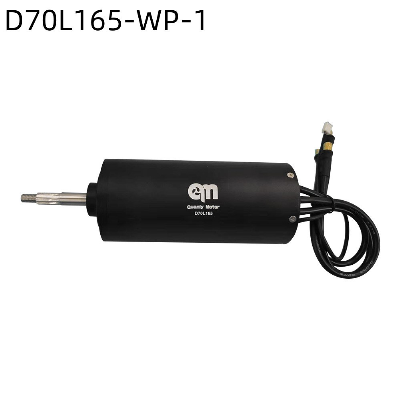

ApplicationsApplications:Electric Propulsion for various watercrafts 1. Efoil / Waterbike 2. Jet Surf/Surboard 3. Underwater thruster 4. Small boat /SUP / Kayak 5. POD drive 6. Jetski / Speed Boat 7. Yacht Either work with propeller directly or as an integrated part in a airtight cabin of trolling motor/outboard motor / POD Product Description Quanly D70L165 Series BLDC motors feature slotted design with internal rotor diameter at 70mm, compact & ruggedized, excellent heat dissipation, and waterproof. Thanks to the reduced air gap, the flux density is higher and torque production is more effective and efficient. Suitable for electric marine propulsion industry when your application requires accurate control of speed, torque and position. Can be customized for - Sensor or sensorless- Winding Current- Shaft Options- Cable and Connector- Kv Ratings- Mounting Options- Encoder or Non Product ParametersVariantD70L165-170D70L165-155D70L165-125D70L165-105D70L165-90D70L165-78Winding turn & connection3T-D2T2.5T3T3.5T4TWorking Voltage 6-16S (18-75.6V)8-20S (25-84V)10-24S (32-100.8V)10-28S (32-117.6V)12-32S (36-134.4V)12-38S (36-159.6V)Max RPM 12,852 13,020 12,600 12,348 12,096 12,449 KV (RPM/V) 1701551251059078No Load Current @8.4V 2.4A2.2A2.1A1.9A1.7A1.5ATorque Constant Kt(N*M/A)0.069770.07590.09490.11390.13280.1518Max Power(KW) 12.8 13.0 13.0 12.8 12.6 12.5 Max Torque(N*M) 20.0 20.3 20.6 20.8 21.0 21.0 Peak Current (A) 300 270 230 190 170 150 Continuous working current(A)13012095807060Max Efficiency 90%91%91%92%92%92%Net Weight (kg)3.23.33.33.23.13.1Construction12N/10PDimensionD70*L165Shaft Dimension D12*34mm+M8*25Wire Length 1.5mConnector 10mmWorking Life10000H Customize per your requestMotor Drawing-Splined ShaftMotor drawing- Screw Shaft Wiring Diagram /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
