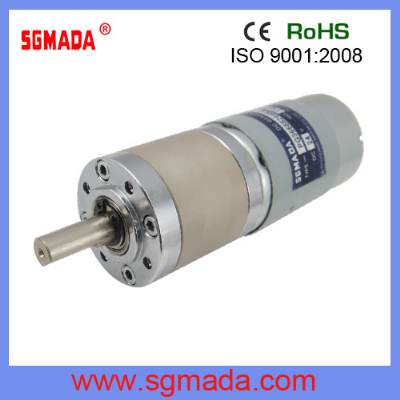

3.3-13W DC Planetary Gear Motor for Automatic Windows

3.3-13W DC Planetary Gear Motor for Automatic WindowsPG36M555 DC Planetary Gear Motor for Automatic TV rackPG36M555 SERIESVoltage: 3VDC 6VDC 9VDC 12VDC 24VDCSpeed range: 3000-9500rpmPower: 3.3-13wTypical applications: Central air-conditioning valve, Amusement equipment, CoinRefund devices, Grill, Oven, Peristaltic pumps, ATM bankAutomatic system, Robot, Medical equipment, OfficeEquipment, Household appliances, Automatic actuator.Weight: 320~400g/PCS(approx)Packing details: CTN size: 32X28XH26cm 40PCS/CTN G. W. 16KgsGearbox data: Number of stages1stages reduction2 stages reduction3 stages reduction4 stages reduction5 stages reductionReduction ratio3.7.213.7
9.2.950.99.299.59188�9N�669977^7
911�2�6gearbox length " L" mm26.432.638.945.352.5Max.Running torque3.0Kgf @ cm6.0Kgf @ cm8.0Kgf @ cm12.0Kgf @ cm20Kgf @ cmMax. Gear breaking torque9.0Kgf @ cm18.0Kgf @ cm24Kgf @ cm36Kgf @ cm60Kgf @ cmMax. Gearing efficiency90%81%73%65%59%    Motor data: Motor nameRated volt.vNo loadLoad torqueStall torqueCurrentSpeedCurrentSpeedTorqueOutput powerTorqueCurrentmAr/minmAr/mingf @ cmWgf @ cmmARS-55512300012≤1403000≤80022001503.36003000RS-55512450012≤2204500≤120033002207.28807800RS-55512600012≤3506000≤2000450030013.512006000RS-55524300024≤703000≤40022001503.36001600RS-55524450024≤1104500≤60033002207.28803000RS-55524600024≤1806000≤1000450030013.512004000       1This table lists some motors parameters, others please refer to specific parameters of  rs-555.htm"       2Afier connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X        gearing efficiency;output speed:motor speed / reduction ratio.    NOTE:   1 Gearmotor named methods: e . g . SG-555123000-99.5K    Motor please refer to the motor data RS-555123000.          Gearbox please refer to gearbox data reduction ratio99.5 .Related to gearmotor output speed and torque please           refer to motor data.    2 Motor can be installed wiht magnetic encorder. encorder parameters please refer to  me-37.htm .   3Standard output shaft after reducing: 8.0mm. other sizes of then output shaft can make as client request.   4Chart only for reference,products shall prevail the entity.Company Introduction  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
