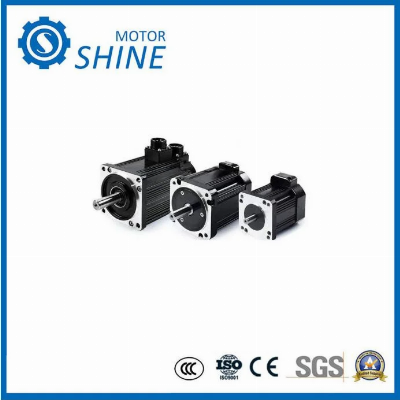

SHN Motors1. Features1) 16 poles with three phases external rotor2) Low torque ripple3) High inertia torque4) Compact design5) Insulation class B6) Application: Medical, Automation2. Performance parameters ItemInstructionsWinding typeStar Hall effect angle120 degree electrical angleResistance Accuracy±10% @20ºCInductance Accuracy±20% @1kHzAmbient Temperature-20ºC~+50ºCInsulation Resistance100MΩMin. ,500VDCDielectric Strength500VAC for one minuteShaft Radial Play0.02Max. (450 g-load)Shaft Axial Play0.15Max. (450 g-load)Insulation classClass B3. Mechanical Dimensions4. Wiring instructions Lead ColorLead GaugeFunction InstructionsREDUL1430 26AWGVccHall positive:+5V~+24V DCBLUEHALL A GREENHALL B WHITEHALL C BLACKGND HALL negativeYELLOWUL1430 20AWGPHASE U REDPHASE V BLACKPHASE W 5. Shnmotor Top Rated Products6. Package 1.FedEX / DHL / UPS / TNT for samples,Door to door service;2.By sea for batch goods;3.Customs specifying freight forwarders or negotiable shipping methods;4.Delivery Time:20-25 Days for samples;30-35 Days for batch goods;5.Payment Terms:T/T,L/C at sight,D/P etc.7. FAQQ1. When can I get the quotation?We usually quote within 24 hours after we get your inquiry.If you are urgent to get the price, please send the message on skype and wechat or call us directly.Q2. How can I get a sample to check your quality?After price confirmed, you can requiry for samples to check quality.If you need the samples, we will charge for the sample cost.But the sample cost can be refundable when your quantity of first order is above the MOQQ3. Can you do OEM for us?Yes, the product packing can be designed as you want.Q4. How about MOQ?1 pcs for carton box.Q5. What is your main market?Eastern Europe, Southeast Asia, South America. Please feel free to contact us if you have any question. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
