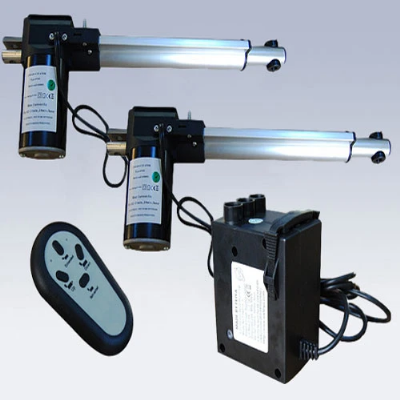

Electrical Linear Actuator Motor Made in China

Linear Actuator Systems FY011C Waterproof for Outside Use FY011 Linear Actuator is a multipurpose product. By advantage of its small size and powerful comprehnsive funtion, it is popular in furniture, medical equipmet, office and so on. Products Specifications: 1) 24VDC permanent magnet motor 2) Thrust up to 6000N in push, and up to 4000 N in pull 3) Elegant and compact design with small instanllation dimensions 4) Built-in limit switches ( not adjustable after leaving factory ) 5) Aluminium or zinc outer tube / inner tube 6) Steel back fixture 7) Standard protection class 8) Noise level < 50 db 9) Warranty: Two years 10) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use Technical specifications of FY011 Trailer Linear Actuator: Model No.: FY011C Stroke: 50-1000mm Installation dimension: Stroke+205mm Load capacity: 750N, 1500N, 4000N, 6000N Free load speed: 30, 18, 8, 4mm/s Input voltage: 24V DC / 12V DC Limit switch: Inner Protection grade: IP66 Type of duty: S2-10min Operation temperature: -26~65 centigrade Features: Material: Aluminum and plastic Color: Black Warranty: Two years Certification: CE/EMC+LVD High quality of electric linear actuator to worldwide customers. We are professional mamnufacturer in linear actuator. Item: Electric Linear Actuator, Electric Linear Motor Series: FY series Item Number: FY011, FY012, FY013 FY04, FY015, FY016, FY017 Delivery time: 3~7 days for samples High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor. Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on. Specification of OurElectric linear actuator: Max. Thrust: 4000N, 6000N, 8000N Voltage: 24VDC or 12VDC, Motor Drive Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement. Duty cycle: 10% Ambient temperature -26° C to +65° C Standard protection class: IP 43 Built-in integral limit switch, not adjustable after leaving factory Low noise design, dB
